• Wheels, 19.5" x 6", K steel (Standard on 4500XD, 5500HD and 5500XD only.)
• Tires, front, 225/70R19.5 F 125/123 L BW HWY VAR1 (Standard on 4500XD, 5500HD and 5500XD only.)
• Tires, rear, 225/70R19.5 F 125/123 L BW HWY VAR1 (Standard on 4500XD, 5500HD and 5500XD only.)
• Grille, Silver
• Assist steps
• Glass, tinted
• LED Headlamps
• Mirror, outside left-hand and right hand dual cab-mounted with integral convex mirror
• Windshield wiper, pulse, wet arm

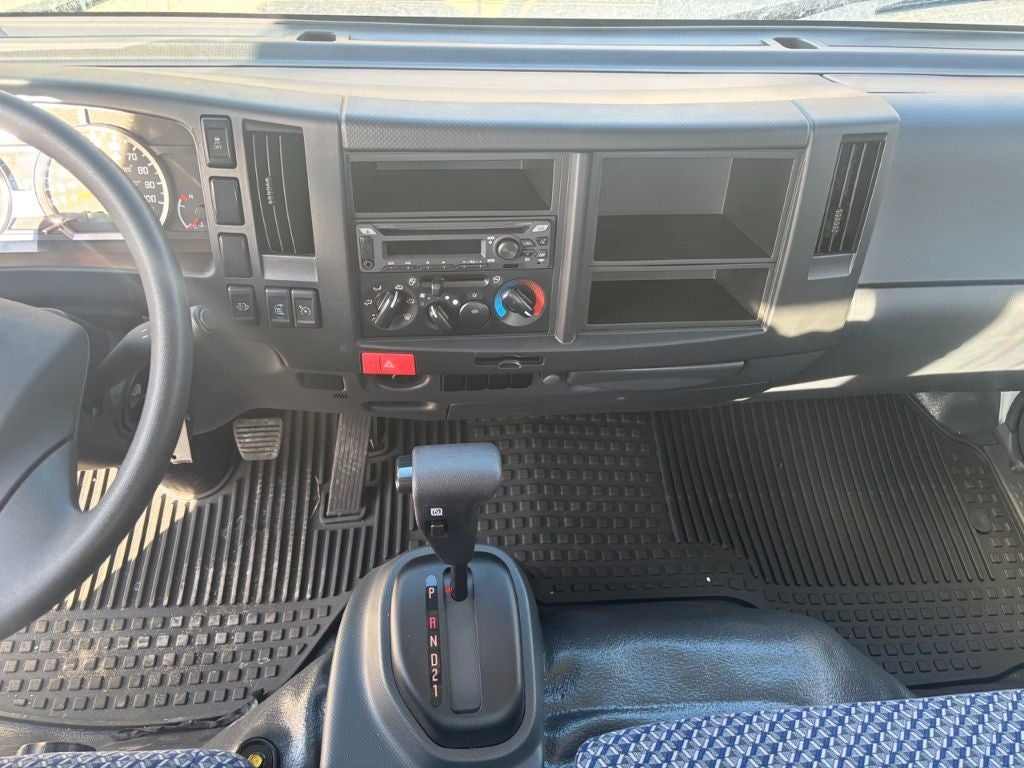

• Audio System, AM/FM stereo with CD player, auxiliary jack, USB port and Bluetooth®
• Audio system feature, 2 speakers

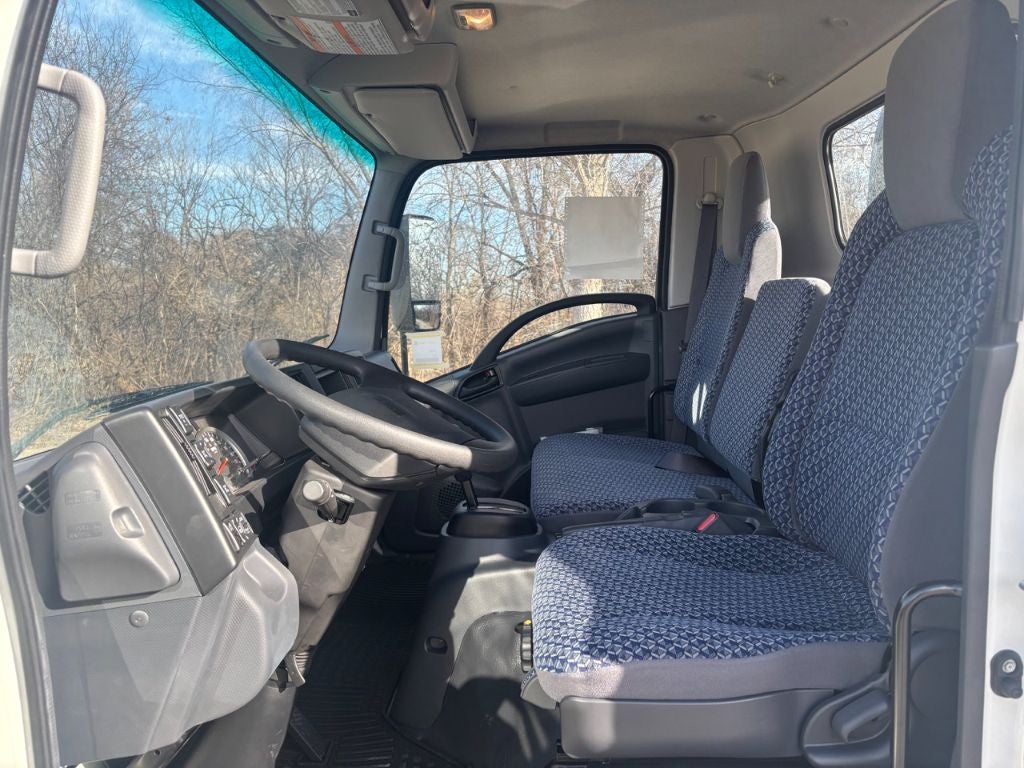

• Seat, front high back bucket driver and passenger tricoat cloth covered reclining high back driver seat with single two occupant fold down passenger seat
• Seat trim, Cloth
• Cup holders
• Floor mats

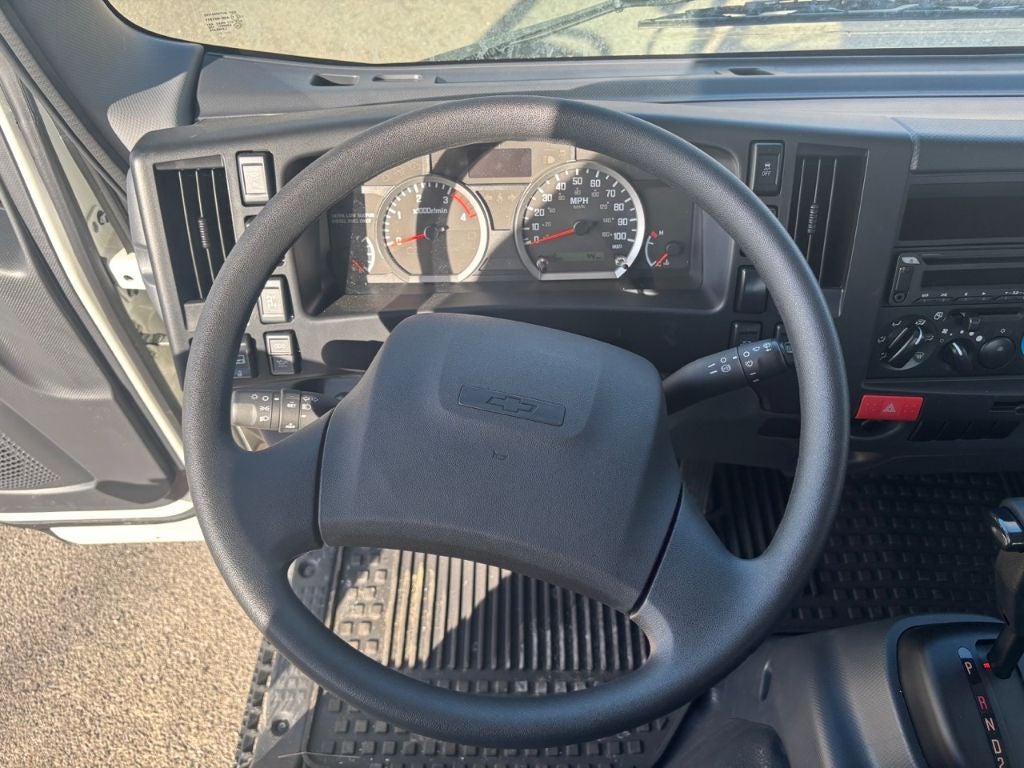

• Steering wheel, urethane
• Steering wheel, tilt and telescopic
• Air conditioning, single-zone manual, integral in-dash mounted

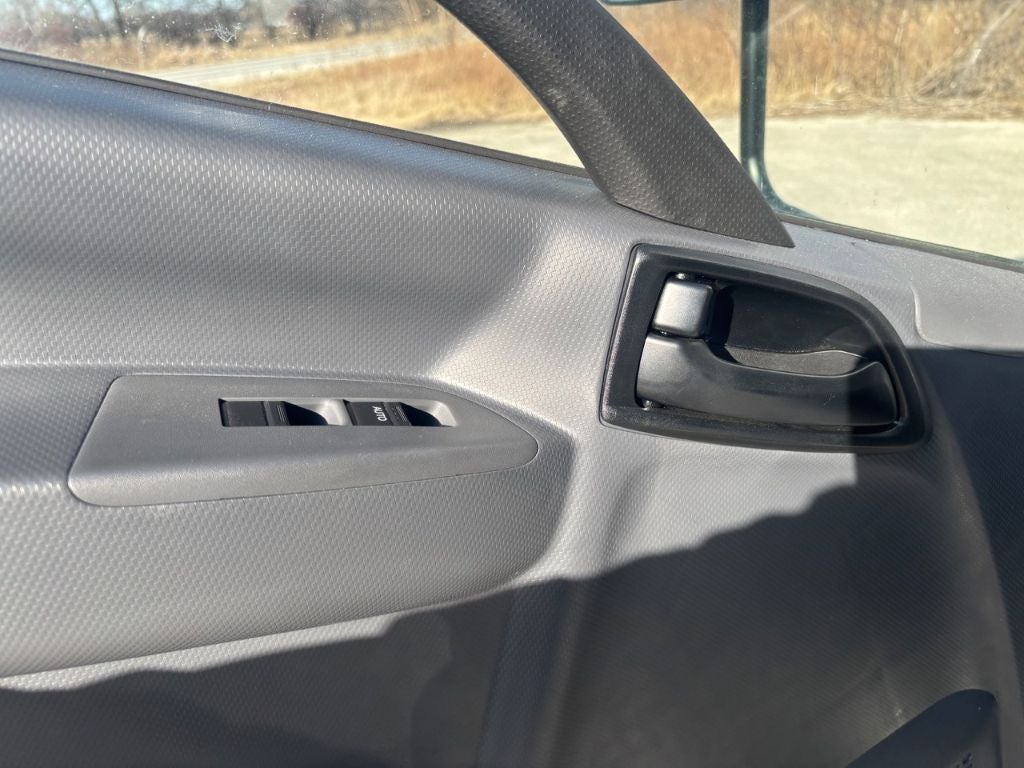

• Windows, power
• Door locks, power
• Cruise control, electronic, automatic
• Windshield washer bottle access on passenger side dash when passenger-side door is open
• Storage, door pockets
• Lighting, interior dome
• Storage, seatback pockets

• Daytime Running Lamps

ENGINE, DIESEL 5.2L 4 CYLINDER

• 215 hp [160.3 kW] @2500 rpm
• 452 lb-ft of torque [612.8 Nm] @ 1850-2750 rpm (Governed). 16 valve
• four cycle
• chain-driven dual overhead camshaft valve train
• a cast iron cylinder block
• and a cast aluminum cylinder head. Turbocharged
• inter-cooled
• water cooled EGR
• direct injection
• electronically controlled common rail fuel system and engine cruise control. Oil level check switch and light. Engine warning system with audible warning for low oil pressure
• high coolant temperature
• and a protection system that will reduce fueling if excessive coolant temperature is detected (STD)

• Vehicle
• Number of Passenger Doors: 2
• Front Frame Rating: - TBD -
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (2nd): 750
• Maximum Alternator Capacity (amps): 140
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 20.8
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 7275
• Gross Axle Wt Rating - Rear (lbs): 13660
• Curb Weight - Front (lbs): 4395
• Curb Weight - Rear (lbs): 2281
• Gross Vehicle Weight Rating Cap (lbs): 19500
• Gross Combined Wt Rating (lbs): 25500
• Suspension
• Suspension Type - Front: Independent w/Tapered Leaf Springs
• Suspension Type - Rear: Independent w/Multi-Leaf Springs
• Spring Capacity - Front (lbs): 8440
• Spring Capacity - Rear (lbs): 14550
• Axle Type - Front: I-Beam
• Axle Capacity - Front (lbs): 7275
• Axle Capacity - Rear (lbs): 14550
• Axle Ratio (:1) - Rear: 5.571
• Shock Absorber Diameter - Front (mm): 42.0
• Shock Absorber Diameter - Rear (mm): 42.0
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 14.3 x - TBD -
• Drum - Rear (Yes or ): Yes
• Rear Drum Diam x Width (in): 14.6 x 5.91
• Tires
• Front Tire Order Code: 2TB
• Rear Tire Order Code: 3TB
• Front Tire Size: 225/70R19.5
• Rear Tire Size: 225/70R19.5
• Front Tire Capacity (lbs): 3640
• Rear Tire Capacity (lbs): 3415
• Revolutions/Mile @ 45 mph - Front: 643
• Revolutions/Mile @ 45 mph - Rear: 643
• Number Of Tires Front: 2
• Number Of Tires Rear: 4
• Wheels
• Front Wheel Size (in): 19.5 x 6
• Rear Wheel Size (in): 19.5 x 6
• Front Wheel Offset (mm): 127
• Rear Wheel Offset (mm): 127
• # of Bolt Holes - Front: 6
• # of Bolt Holes - Rear: 6
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Front Bolt Pattern: 6 Hole JIS 8.75"
• Rear Bolt Pattern: 6 Hole JIS 8.75"
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 52.5
• Turning Diameter - Wall to Wall (ft): 58.1
• Frame
• Frame Type: Ladder-Type C-Section
• Sect Modulus Rails Only (in³): 7.20
• Frame RBM (N/A): 316800
• Frame Strength (lbs): 44000
• Frame Thickness (in): 8.50 x 2.76 x 0.24
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 30.0
• Fuel Tank Location: Frame Rail
• Exterior Dimensions
• Wheelbase (in): 176.0
• Length, Overall w/o rear bumper (in): 267.5
• Width, Max w/o mirrors (in): 81.3
• Height, Overall (in): 92.4
• Overhang, Front (in): 48.3
• Overhang, Rear w/o bumper (in): 43.1
• Front Bumper to Back of Cab (in): 70.9
• Cab to Axle (in): 153.5
• Cab to End of Frame (in): 196.6
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): 33.0
• Frame Width, Rear (in): 33.5
• Ground Clearance, Front (in): 7.5
• Ground Clearance, Rear (in): 7.5
• Body Length Default Value (ft): 20
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 38.4
• Front Leg Room (in): 29.5
• Front Shoulder Room (in): 70.7
• Front Hip Room (in): 67.7
• Summary

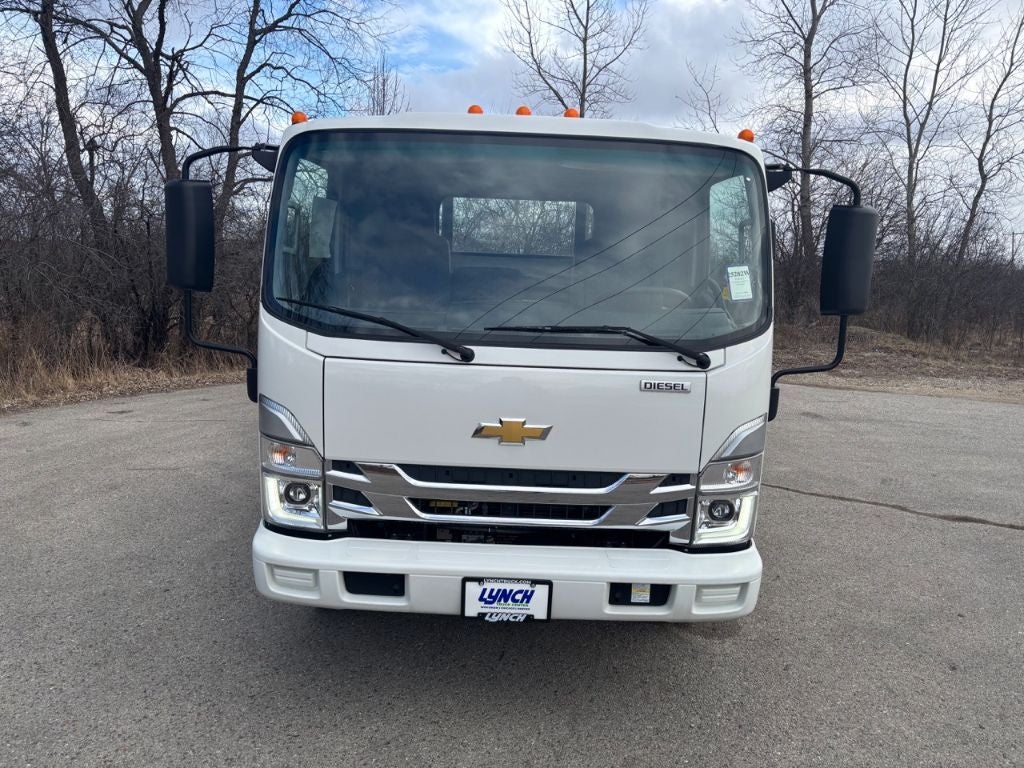

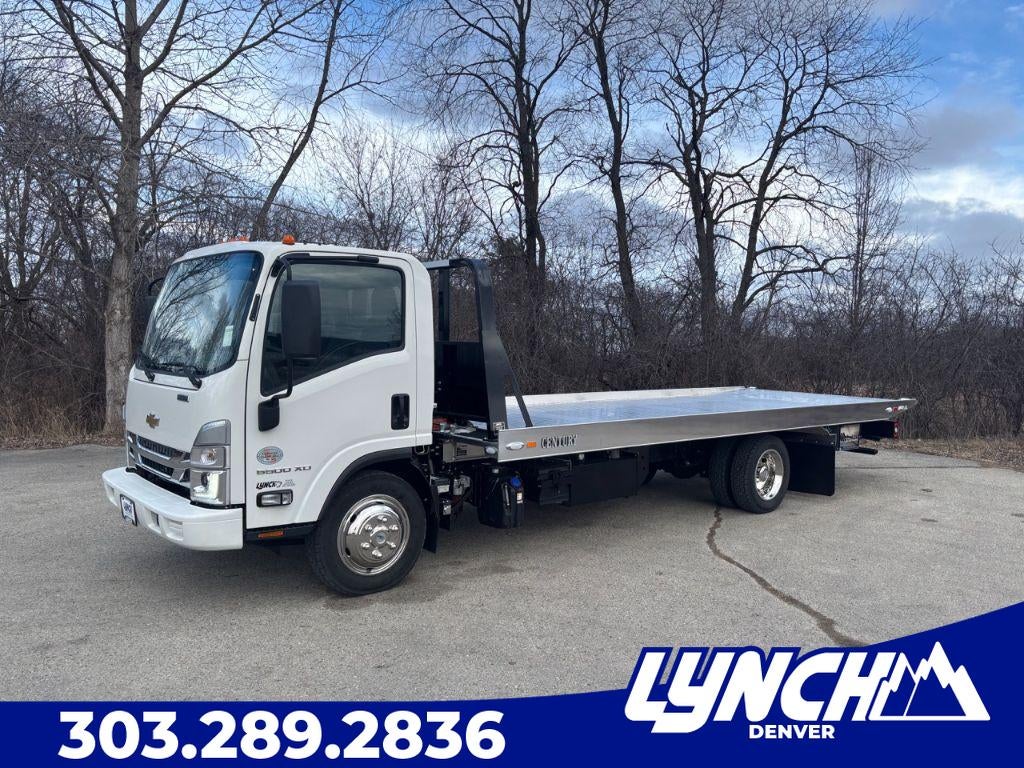

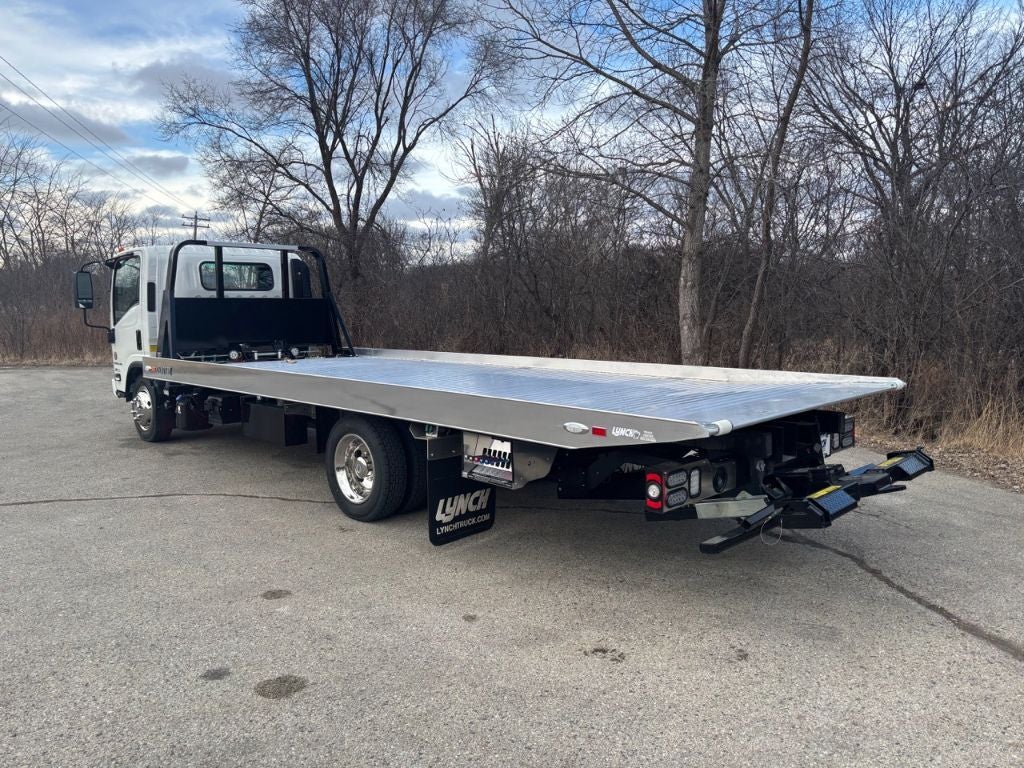

• Vehicle Name: Chevrolet 5500XD LCF Diesel
• Body Style: Regular Cab Chassis Cab
• Medium Duty Performance
• Driver Ratio: - TBD -
• Torque @ Clutch Engage (ft-lbs): - TBD -
• Torque Converter: 1.7639
• Static Loaded Radius (in): - TBD -
• Max Speed For Gradeability: - TBD -
