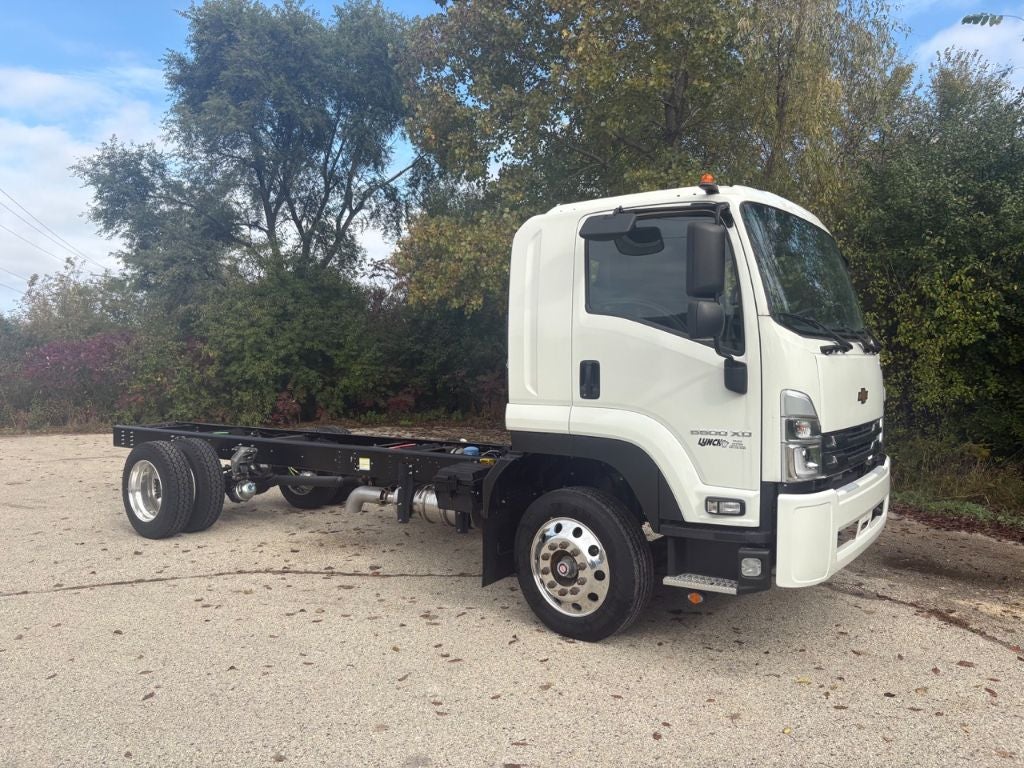

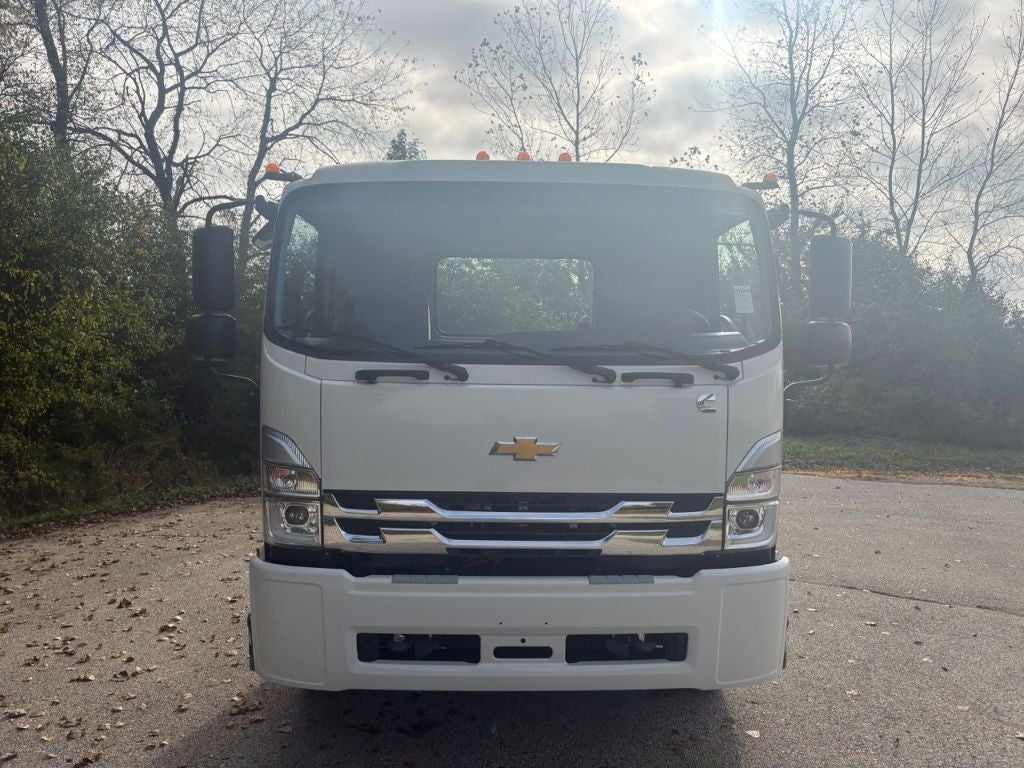

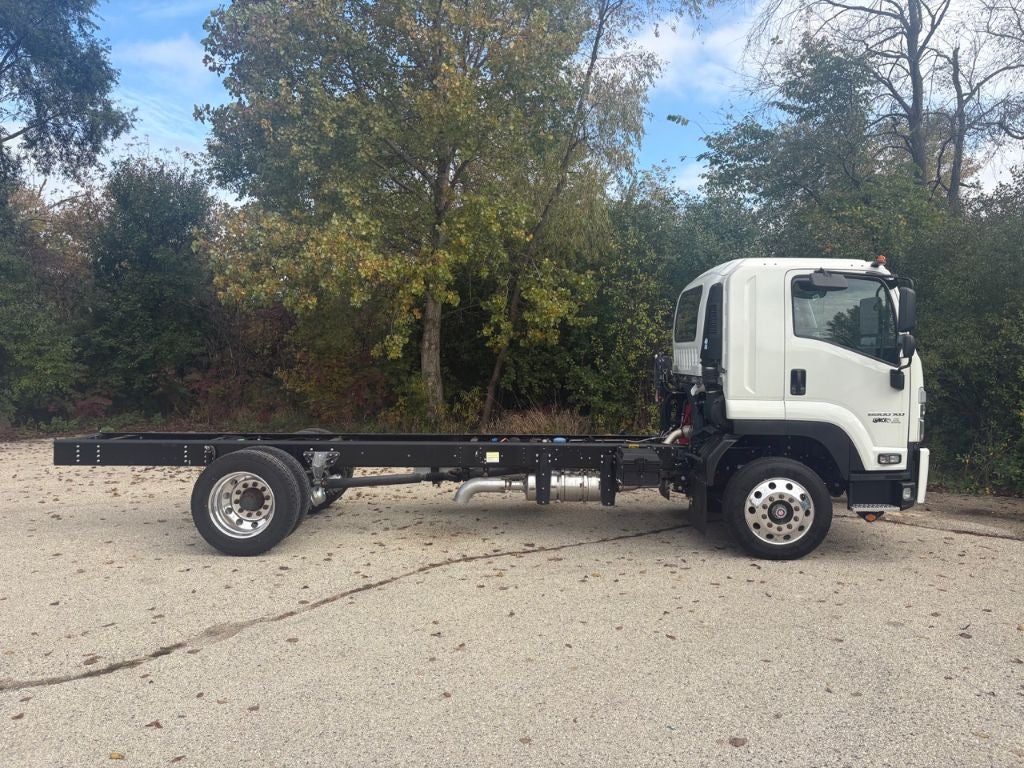

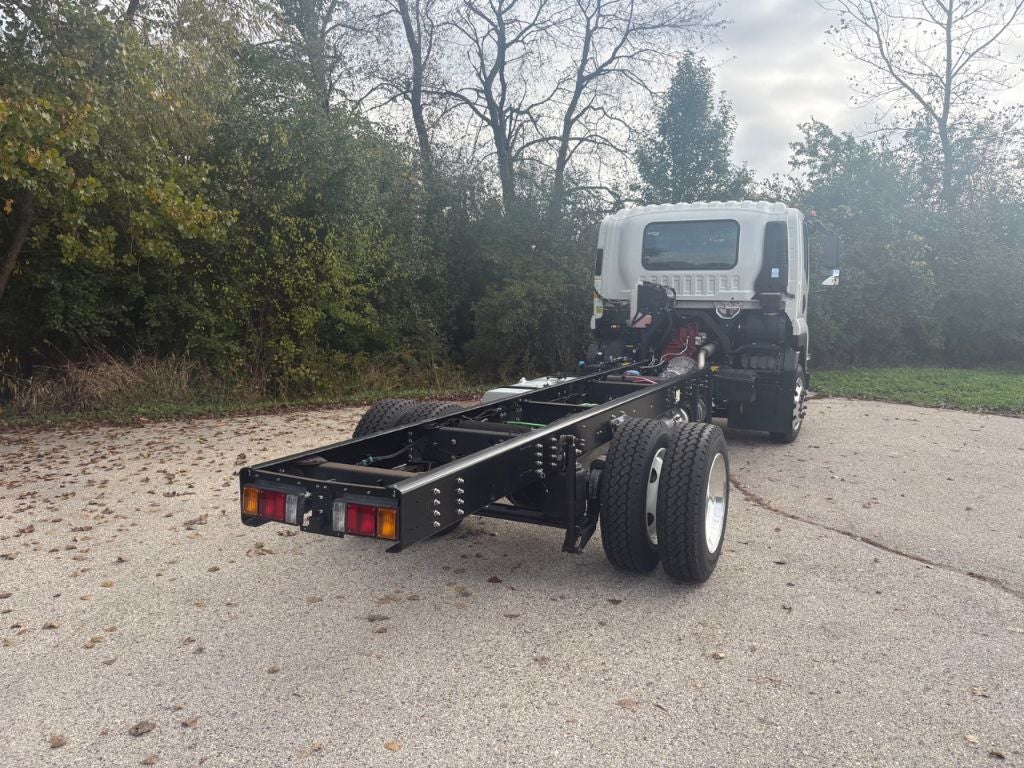

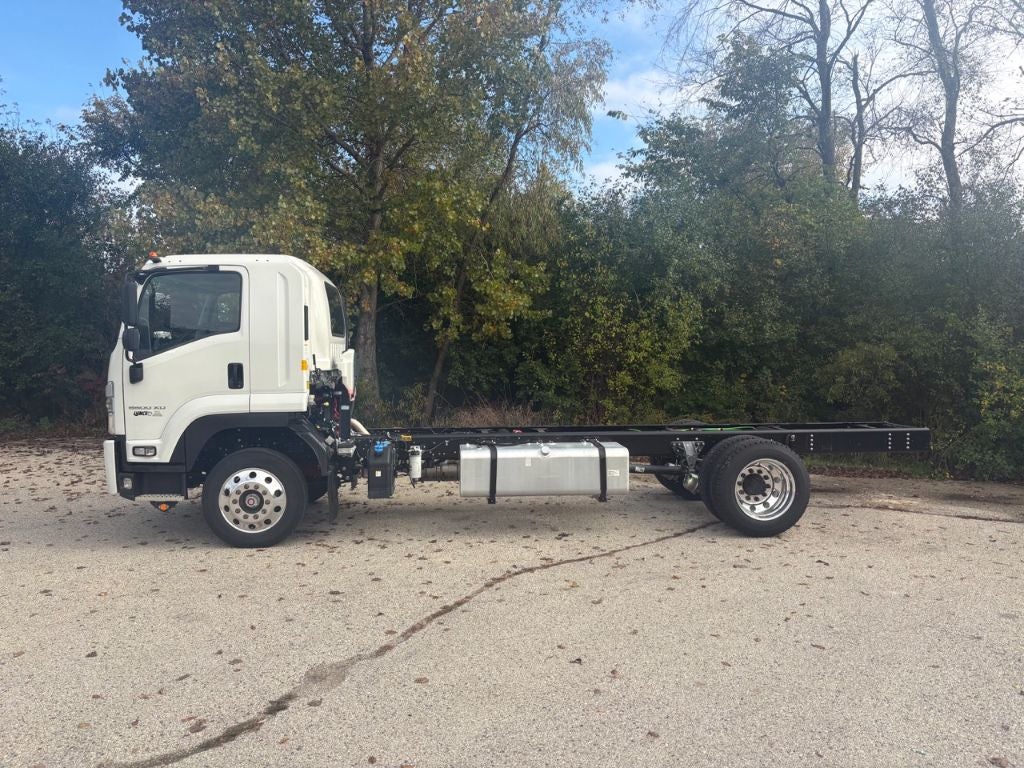

2024 Chevrolet 6500XD 6500XD/7500XD
1
/
17
2024 Chevrolet 6500XD 6500XD/7500XD
Available For Sale
-
$29,698 SAVINGS$79,992 LYNCH EASY PRICE
- MSRP: $109,690
- Dealer Discount $29,698
- Final Price $79,992
-
$29,698 SAVINGS$79,992 LYNCH EASY PRICE
- MSRP: $109,690
- Dealer Discount $29,698
- Final Price $79,992
Visit our Store
- Lynch Truck Center
-
2530 Beck Drive
Waterford, WI 53185
- Sales: 262-514-4000
- Service: 262-332-6551
- Parts: 262-332-6550
Vehicle Information
VIN:
54DKFS1F3RSA02556
Stock #:
25765W
Model Code:
CT74503
-
Body Style 100 - C-CAB-CHASSIS -
Exterior Color Arc White
-
Engine 6 Cyl, 6.7L -
Transmission AUTOMATIC / 4x2 -
Fuel Type Diesel
Highlighted Features
Feature availability subject to final vehicle configuration. Please reference window sticker for more info.
- Bluetooth®
- Turbo Charged Engine
- Cruise Control
All Features
- Rear axle, 4.88 ratio (Standard and only available on 6500 XD model.)
- Air cleaner, heavy-duty, 11" diameter dry paper single element. Air cleaner canister standard with air restriction gauge. Back of cab location.
- Drivetrain, rear-wheel drive
- Battery, dual 750 cold-cranking amps, 12 volt, maintenance free with threaded post
- Alternator, 160 amps
- Frame, ladder-type channel frame. Full C section straight frame 33.5" (85.1 cm) wide. Yield strength 80,000 psi, section modulus 12.69 cu.in. and RBM 1,015,000 lb-ft/in per rail.
- Incomplete vehicle certification
- Wheelbase, 188" (477.5 cm)
- GVWR, 25,950 lbs. (11,770 kg) (Standard on 6500 XD model and available on 7500 XD model.)
- Front suspension, 12,000 lbs. (5450 kg) tapered leaf semi-elliptical steel alloy. Includes shock absorbers with stabilizer bar
- Rear Suspension, 21,000 lbs. (9525 kg), semi-elliptical steel alloy bolted multi-leaf and shock absorbers
- Front axle, 12,000 lbs. (5,450 kg), Dana E-1254-W
- Rear axle, 19,000 lbs. (8618 kg) R050, full-floating single-speed with oil lubricated rear wheel-bearings, Dana Spicer 19060S (Standard and only available on 6500 XD model.)
- Vehicle Application Truck
- Brakes, dual circuit full air drum brakes with 4 channel anti-lock brake system
- Exhaust brake
- Fuel Tank, 100 Gallon, (378L), rectangular aluminum fuel tank mounted on left hand frame rail. Fuel water separator with indicator light.
- Exhaust, single horizontal outlet
- Wheels, 22.5 x 8.25 steel, painted white
- Tires, Front, LT225/70R22.5 low profile LRR (low rolling resistance) tubeless steel belted radial. Front Highway tread. (Standard on 6500 XD model, not available on 7500 XD model.)
- Tires, Rear, LT225/70R22.5 low profile LRR (low rolling resistance) tubeless steel belted radial. Rear Highway traction tread. (Standard on 6500 XD model, not available on 7500 XD.)
- Grille, color-keyed bar and grille surround
- Glass, tinted
- Grille, Silver
- Mirror, outside left hand and right hand dual cab mounted exterior with convex mirrors for 96" wide body
- LED Headlamps

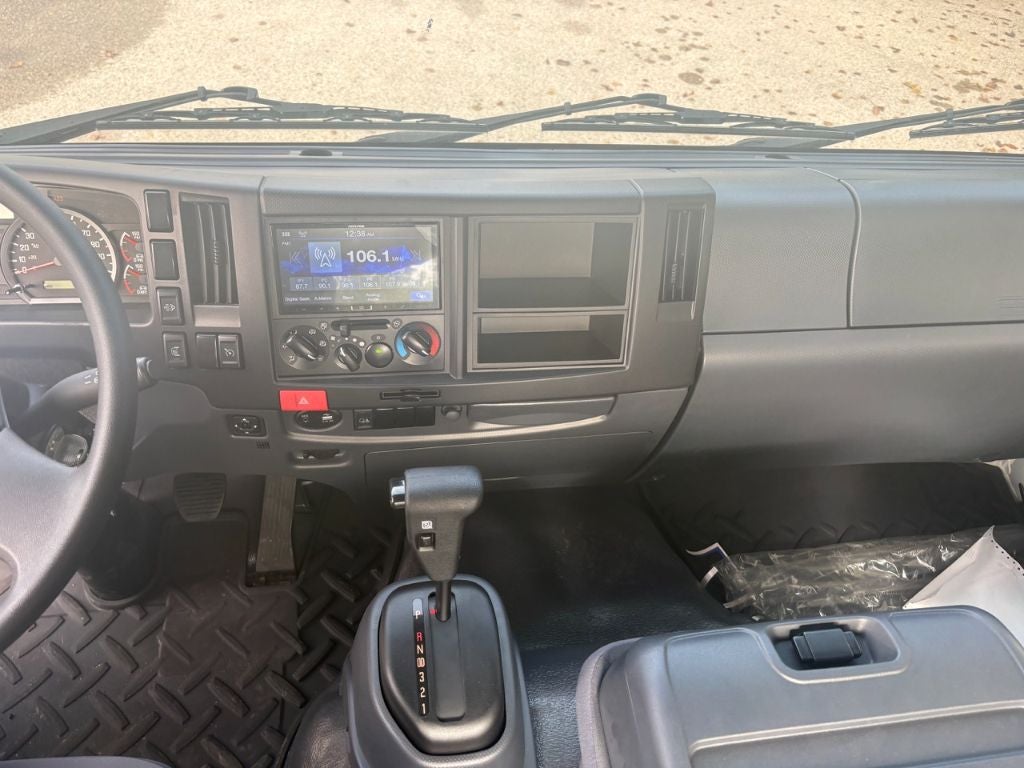

- Audio System, AM/FM stereo with CD player, auxiliary jack, USB port and Bluetooth®
- Audio system feature, 2 speakers

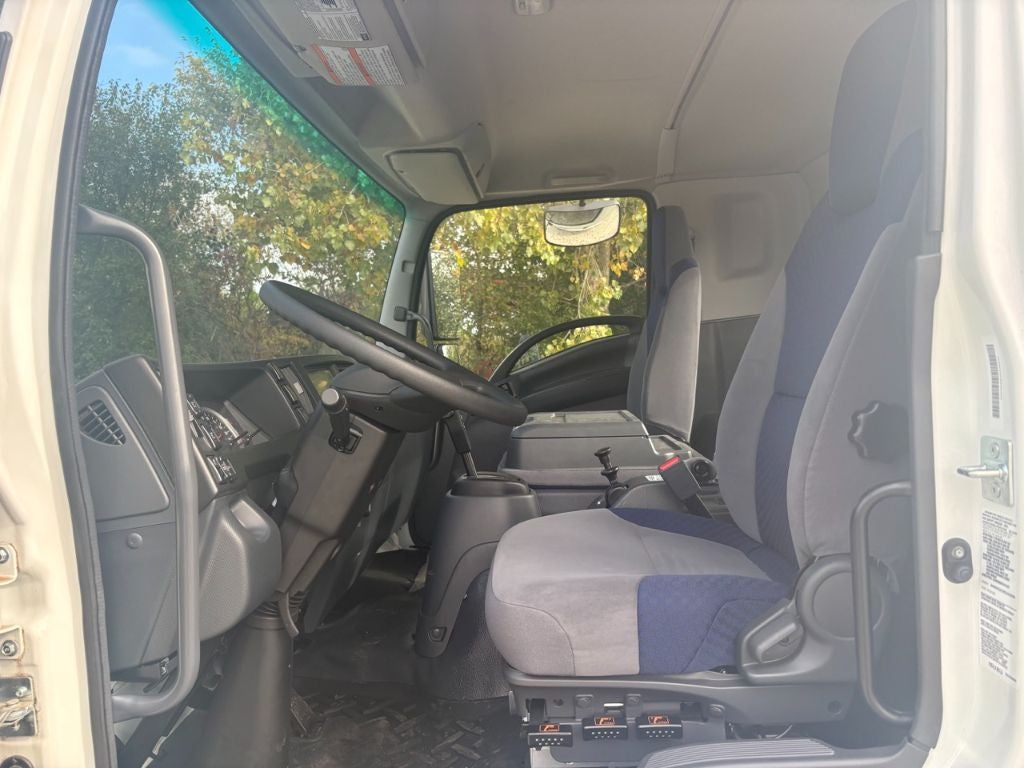

- Seat, high back driver only air suspension system and fixed passenger seat
- Seat trim, Cloth
- Cup holders
- Floor mats

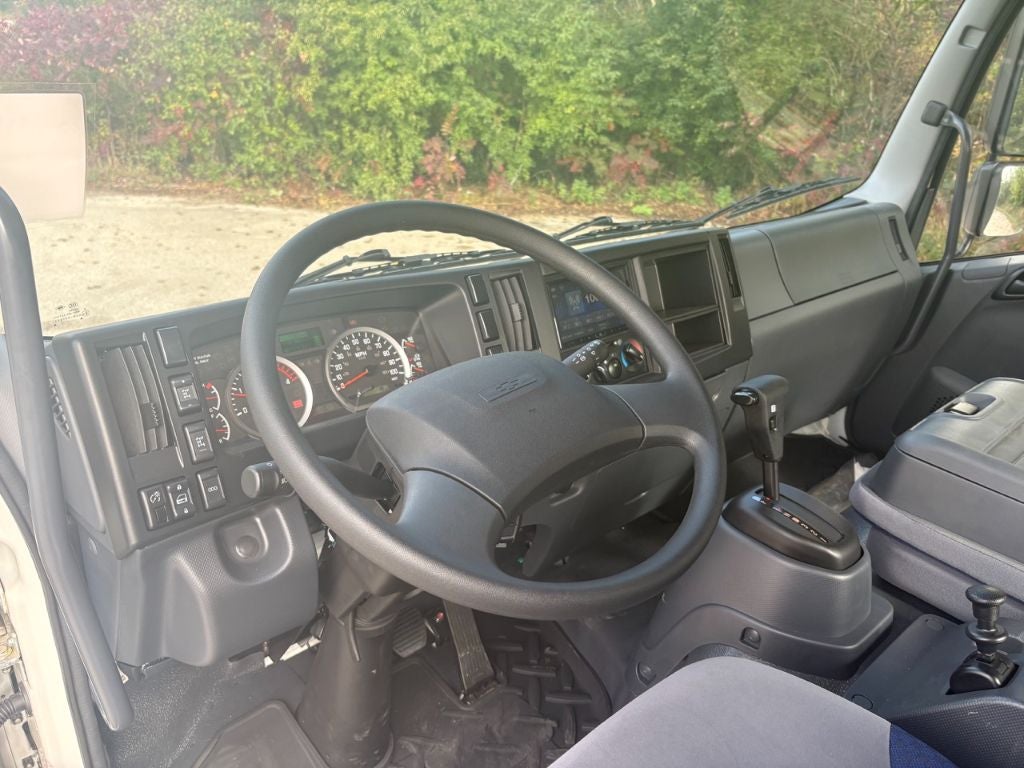

- Steering wheel, urethane
- Steering column, Tilt-Wheel and telescoping steering column

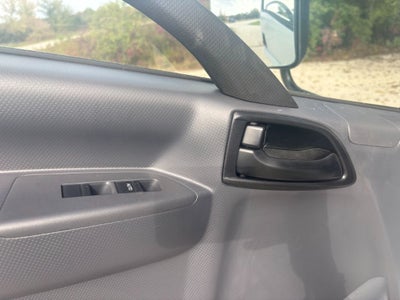

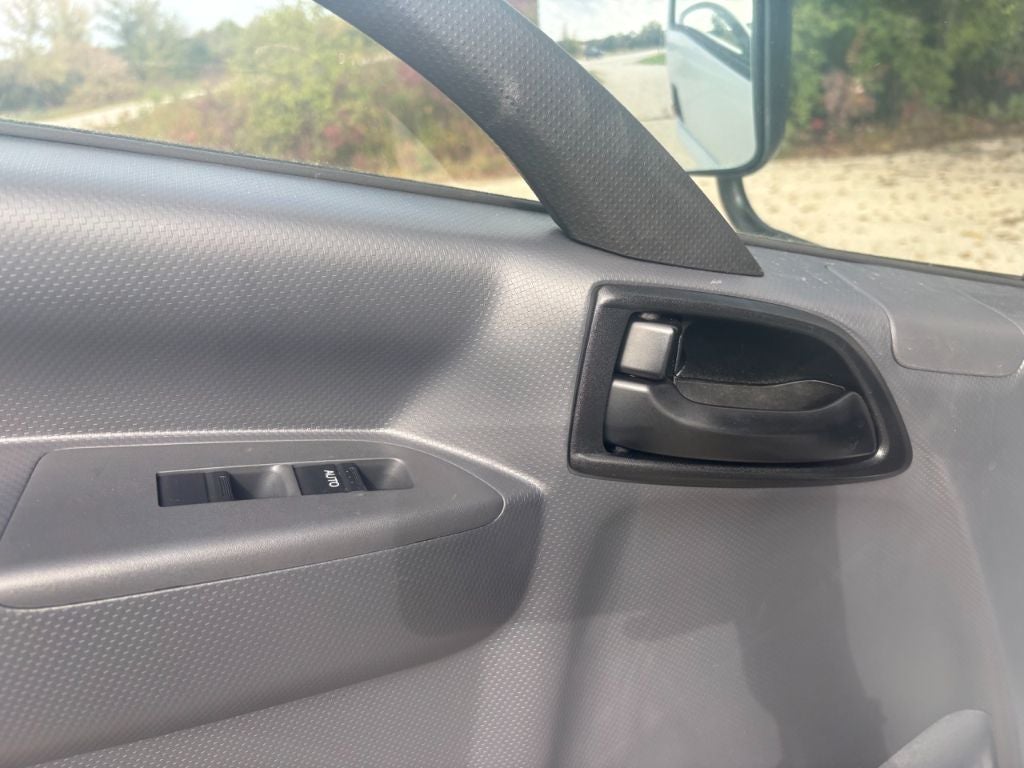

- Windows, power
- Door locks, power
- Cruise control, electronic, automatic
- Windshield washer bottle access, underhood
- Air conditioning, single-zone manual, integral in-dash mounted
- Storage, door pockets
- Lighting, interior dome
- Storage, seatback pockets
- Park brake, air-controlled, spring-type
- Daytime Running Lamps
ENGINE, CUMMINS B6.7L TURBOCHARGED 6-CYLINDER DIESEL ENGINE, DELIVERING 260 HP AND AND 660 LB-FT OF TORQUE
- (STD)
- Number of Passenger Doors: 2
- Front Frame Rating: - TBD -
- Cold Cranking Amps @ 0° F (Primary): 750
- Cold Cranking Amps @ 0° F (2nd): 750
- Maximum Alternator Capacity (amps): 160
- Maximum Alternator Watts: - TBD -
- Total Cooling System Capacity (qts): - TBD -
- Gross Axle Wt Rating - Front (lbs): 11000
- Gross Axle Wt Rating - Rear (lbs): 19000
- Curb Weight - Front (lbs): 6701
- Curb Weight - Rear (lbs): 3699
- Gross Vehicle Weight Rating Cap (lbs): 25950
- Gross Combined Wt Rating (lbs): 30000
- Suspension Type - Front: Independent w/Tapered Leaf Springs
- Suspension Type - Rear: Independent w/Multi-Leaf Springs
- Spring Capacity - Front (lbs): 12000
- Spring Capacity - Rear (lbs): 21000
- Axle Type - Front: Dana E-1254-W
- Axle Type - Rear: Dana Spicer 19060S
- Axle Capacity - Front (lbs): 12000
- Axle Capacity - Rear (lbs): 19000
- Axle Ratio (:1) - Rear: 4.88
- Brake Type: Air
- Brake ABS System: 4-Wheel
- Drum - Front (Yes or ): Yes
- Front Drum Diam x Width (in): - TBD -
- Drum - Rear (Yes or ): Yes
- Rear Drum Diam x Width (in): - TBD -
- Front Tire Order Code: YCF
- Rear Tire Order Code: YCR
- Front Tire Size: LT225/70R22.5
- Rear Tire Size: LT225/70R22.5
- Front Tire Capacity (lbs): - TBD -
- Rear Tire Capacity (lbs): - TBD -
- Revolutions/Mile @ 45 mph - Front: - TBD -
- Revolutions/Mile @ 45 mph - Rear: - TBD -
- Number Of Tires Front: 2
- Number Of Tires Rear: 4
- Front Wheel Size (in): 22.5 x 8.25
- Rear Wheel Size (in): 22.5 x 8.25
- Front Wheel Offset (mm): - TBD -
- Rear Wheel Offset (mm): - TBD -
- # of Bolt Holes - Front: - TBD -
- # of Bolt Holes - Rear: - TBD -
- Front Wheel Material: Steel
- Rear Wheel Material: Steel
- Front Bolt Pattern: - TBD -
- Rear Bolt Pattern: - TBD -
- Steering Type: Pwr
- Steering Ratio (:1), On Center: - TBD -
- Steering Ratio (:1), At Lock: - TBD -
- Turning Diameter - Curb to Curb (ft): 51.8
- Turning Diameter - Wall to Wall (ft): 56.9
- Frame Type: Ladder-Type C-Section
- Sect Modulus Rails Only (in³): 12.69
- Frame RBM (N/A): 1015000
- Frame Strength (lbs): 80000
- Frame Thickness (in): - TBD -
- Fuel Tank Capacity, Approx (gal): 100
- Fuel Tank Location: Left Frame Rail
- Wheelbase (in): 188
- Length, Overall w/o rear bumper (in): 328.5
- Width, Max w/o mirrors (in): 93.5
- Height, Overall (in): 112
- Overhang, Front (in): - TBD -
- Overhang, Rear w/o bumper (in): - TBD -
- Front Bumper to Back of Cab (in): 81.5
- Cab to Axle (in): 163.0
- Cab to End of Frame (in): 247.0
- Ground to Top of Frame (in): - TBD -
- Frame Width, Rear (in): 33.5
- Ground Clearance, Front (in): - TBD -
- Ground Clearance, Rear (in): - TBD -
- Body Length Default Value (ft): 20
- Passenger Capacity: 3
- Front Head Room (in): - TBD -
- Front Leg Room (in): - TBD -
- Front Shoulder Room (in): - TBD -
- Front Hip Room (in): - TBD -
- Vehicle Name: Chevrolet 6500 XD LCF Diesel
- Body Style: Regular Cab Chassis Cab
- Driver Ratio: - TBD -
- Torque @ Clutch Engage (ft-lbs): - TBD -
- Torque Converter: - TBD -
- Static Loaded Radius (in): - TBD -
- Max Speed For Gradeability: - TBD -
Warranty
- Basic Warranty: 36 months / Unlimited miles
- Drivetrain Warranty: 36 months / Unlimited miles
- Corrosion Warranty: 48 months / Unlimited miles
- Rear Axle Warranty: 36 months / Unlimited miles
- Frame Rail Warranty: 36 months / Unlimited miles - 3 years/Unlimited Miles (no charge) AND up to 5 years/Unlimited miles (50% charge)
- Roadside Assistance Warranty: 36 months / Unlimited miles
