2024 RAM 5500 Chassis
1
/
18

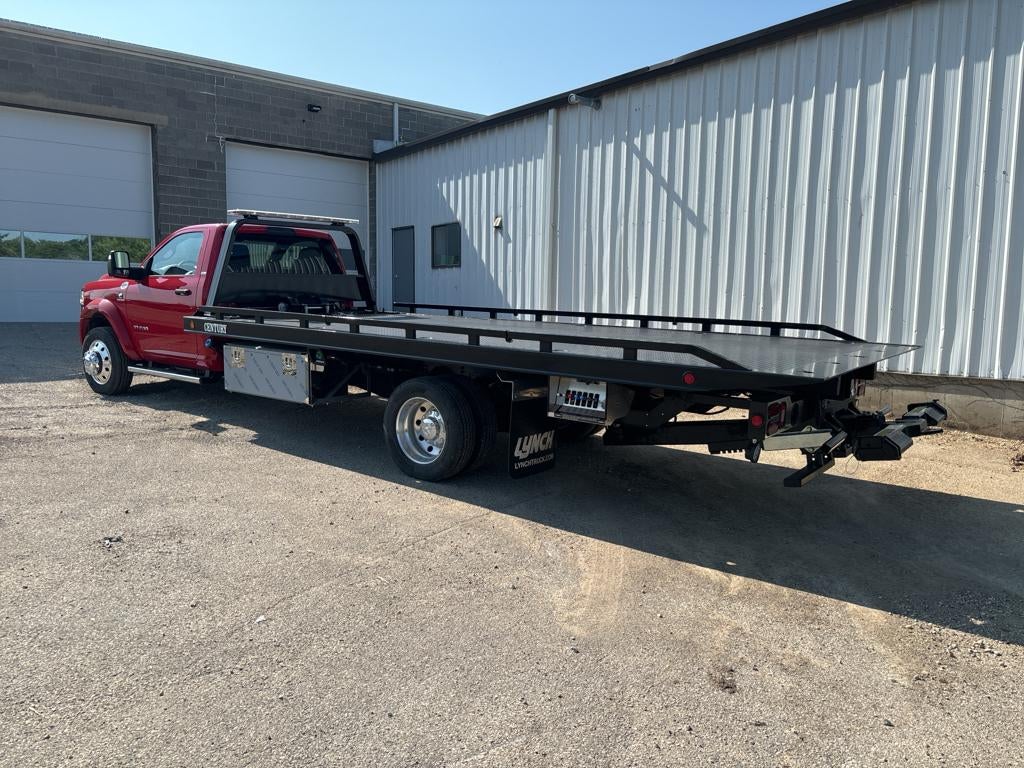

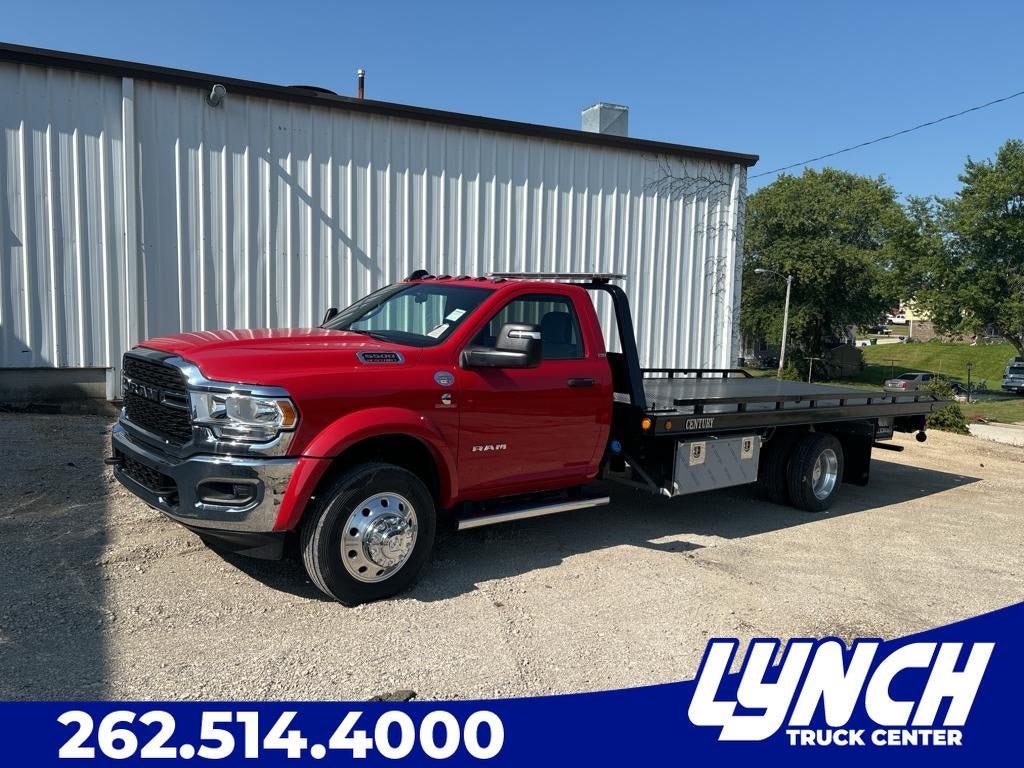

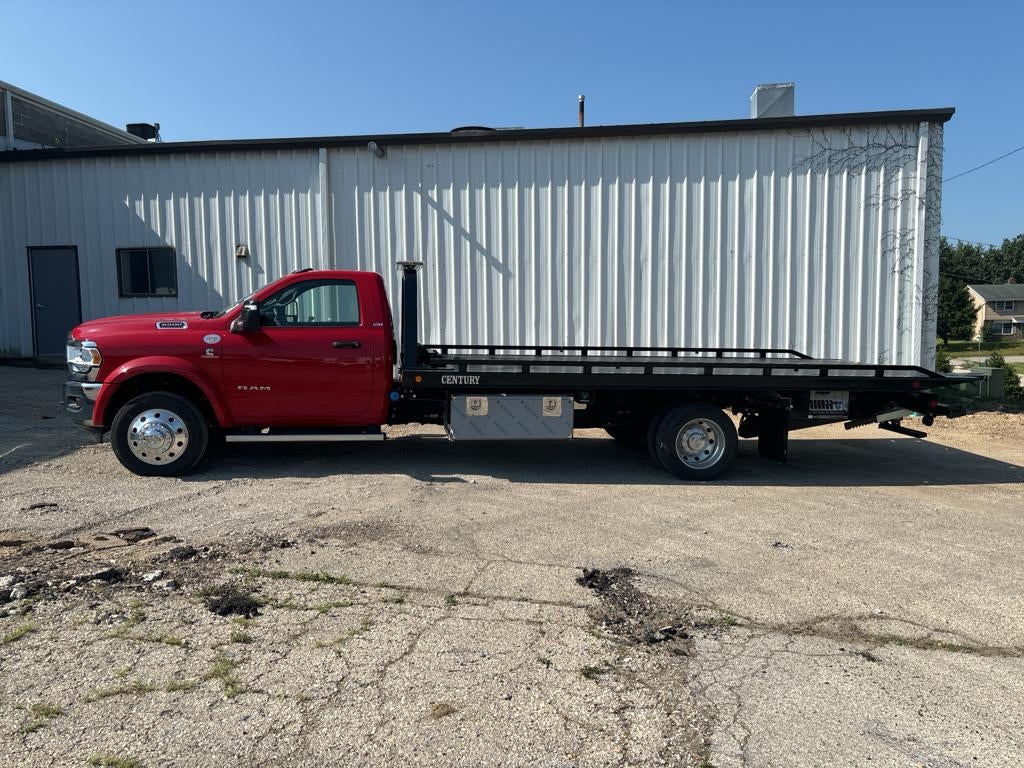

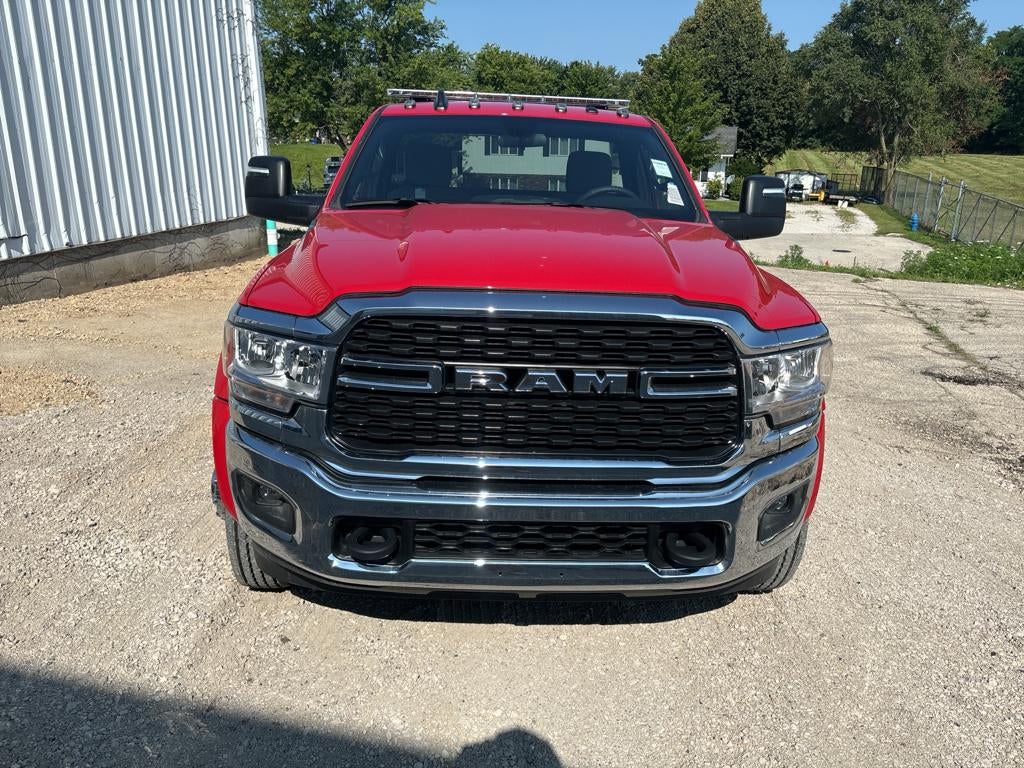

2024 RAM 5500 Chassis w/ Century 10S Carrier
Available For Sale
Visit our Store
- Lynch Truck Center
-
2530 Beck Drive
Waterford, WI 53185
- Sales: 262-514-4000
- Service: 262-332-6551
- Parts: 262-332-6550
Vehicle Information
VIN:
3C7WRMDL2RG164843
Stock #:
25908W
Model Code:
DP5L66
-
Body Style 201 - T-CARRIER -
Exterior Color Flame Red Clear Coat
-
Engine L6, 6.7L -
Transmission 6-SPEED AUTO AISIN AS69RC HD / RWD; Dual Rear Wheels -
Fuel Type Diesel
Highlighted Features
Feature availability subject to final vehicle configuration. Please reference window sticker for more info.
- Bluetooth®
- Keyless Ignition System
- Turbo Charged Engine
- Cruise Control
Dealer Comments
Century Carrier ***Available Financing*** ***Coast to Coast Delivery*** **Unlimited Mileage Warranty Available**
Standard Features:

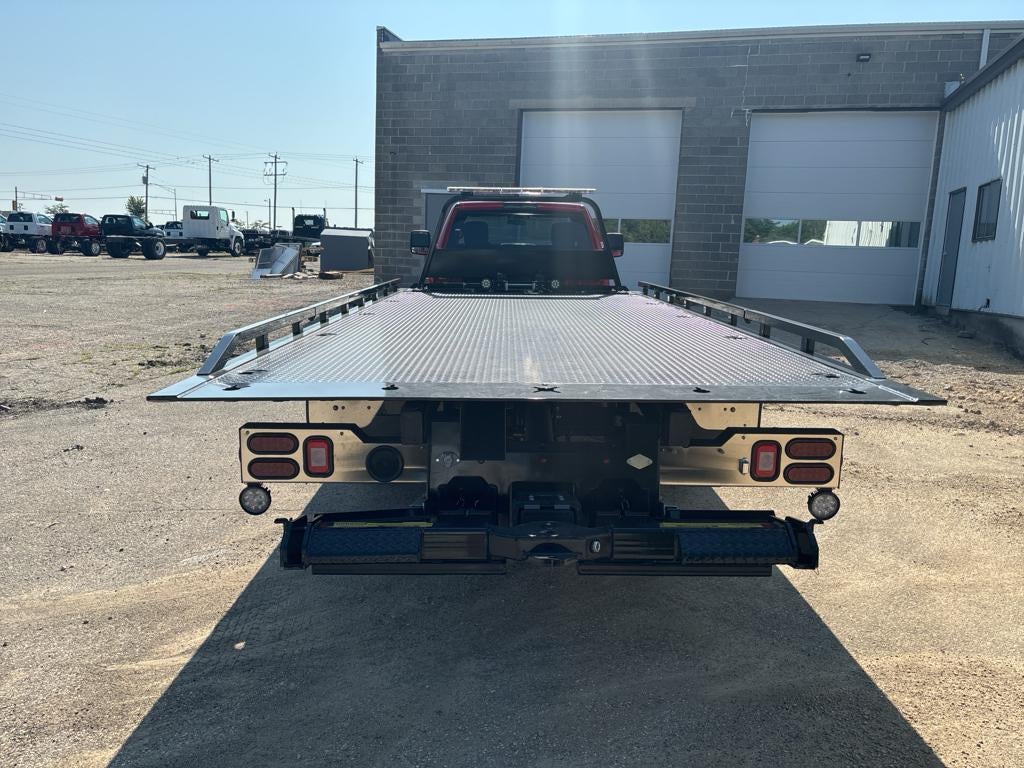

Platform Available in Aluminum or Steel
Floor Level Sides w/ Stake Pockets (Steel)
Bi-Hollow Tube Rails (Aluminum)
Subframe Length 210” (19’-19.5’); 230” (20’-22’)
Right & Left Chain Trays
Safety Chains (2 Front, 2 Rear)
Painted in Black Acrylic Urethane (Steel Only)

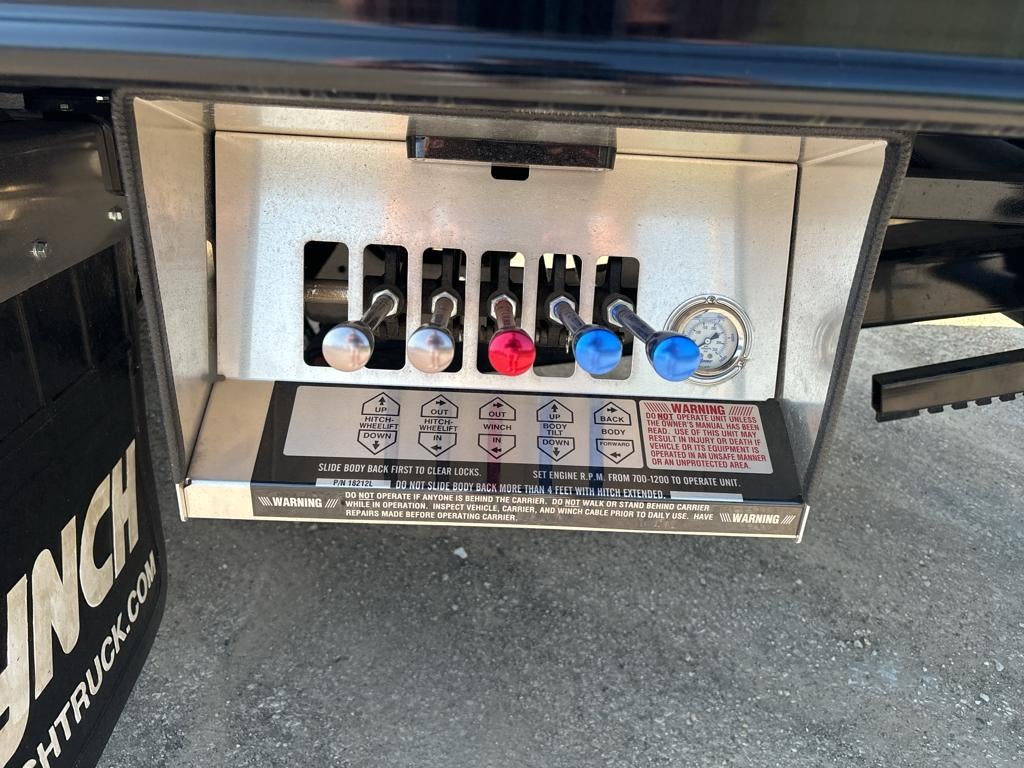

Left & Right Side Illuminated Controls
Federal Standard #108 LED Lighting

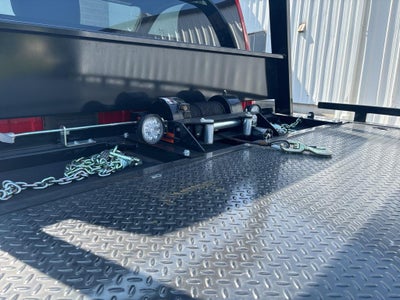

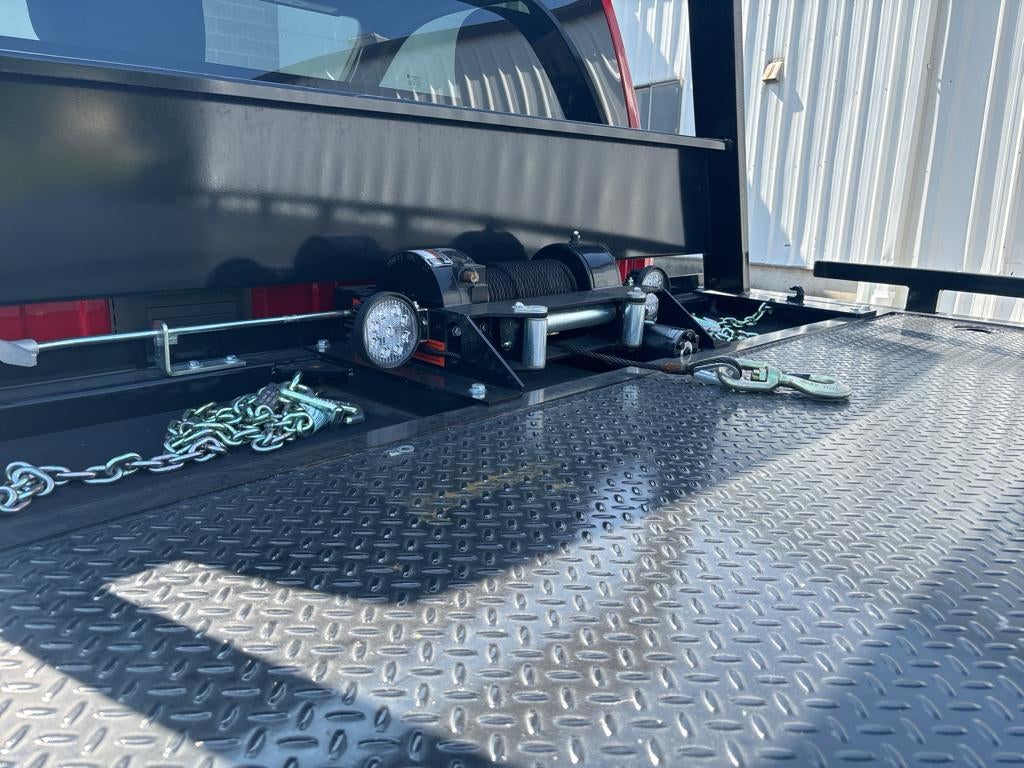

8,000 lb Hydraulic Winch w/ 50’ Cable
Full Function Wheel Lift System
Slide-In L-Arms w/ Anti-Theft Storage
Pre-Wired Electrical Junction Box
Back-Up Lights & Alarm
Adjustable Rear Stabilizer
6-Spool Capable Control Station
Lubrication Fittings on All Pivot Points
Bed Built 96” Wide
11 Key Slot Package (Steel)
6 Key Slot Package (Aluminum)
Slide Pads
Bed Anti-Tilt Lockout
Roller Bed Positive Lock-Down
Two Lift Cylinders
One Extension Cylinder
Manual Shift Winch Clutch Release
Cable Tensioner
Cable Roller Guide
Tow Light Socket
Hydraulic Pump
Mud Flaps
2 Position House Lock with Indicators
Standard Features:
Platform Available in Aluminum or Steel
Floor Level Sides w/ Stake Pockets (Steel)
Bi-Hollow Tube Rails (Aluminum)
Subframe Length 210” (19’-19.5’); 230” (20’-22’)
Right & Left Chain Trays
Safety Chains (2 Front, 2 Rear)
Painted in Black Acrylic Urethane (Steel Only)
Left & Right Side Illuminated Controls
Federal Standard #108 LED Lighting
8,000 lb Hydraulic Winch w/ 50’ Cable
Full Function Wheel Lift System
Slide-In L-Arms w/ Anti-Theft Storage
Pre-Wired Electrical Junction Box
Back-Up Lights & Alarm
Adjustable Rear Stabilizer
6-Spool Capable Control Station
Lubrication Fittings on All Pivot Points
Bed Built 96” Wide
11 Key Slot Package (Steel)
6 Key Slot Package (Aluminum)
Slide Pads
Bed Anti-Tilt Lockout
Roller Bed Positive Lock-Down
Two Lift Cylinders
One Extension Cylinder
Manual Shift Winch Clutch Release
Cable Tensioner
Cable Roller Guide
Tow Light Socket
Hydraulic Pump
Mud Flaps
2 Position House Lock with Indicators
All Features
- 4.44 Axle Ratio
- GVWR: 18,000 lbs
- 50 State Emissions
- Rear-Wheel Drive
- 730CCA Maintenance-Free Battery w/Run Down Protection
- 220 Amp Alternator
- 87 mph Maximum Speed
- Towing Equipment -inc: Trailer Sway Control
- Trailer Wiring Harness
- 11020# Maximum Payload
- HD Shock Absorbers
- Front Anti-Roll Bar and Rear HD Anti-Roll Bar
- Hydraulic Power-Assist Steering
- 52 Gal. Fuel Tank
- Single Stainless Steel Exhaust
- Leading Link Front Suspension w/Coil Springs
- Solid Axle Rear Suspension w/Leaf Springs
- 4-Wheel Disc Brakes w/4-Wheel ABS, Front And Rear Vented Discs
- Upfitter Switches
- Mechanical Limited Slip Differential
- Wheels: 19.5" x 6.0" Steel
- Tires: 225/70R19.5G All Position
- Clearcoat Paint
- Front Bumper w/2 Tow Hooks
- Black Side Windows Trim and Black Front Windshield Trim
- Black Door Handles
- Exterior Mirrors w/Clearance Lights
- Manual Telescoping Mirrors
- Black Exterior Mirrors
- Manual Folding Exterior Mirrors
- Fixed Rear Window
- Light Tinted Glass
- Variable Intermittent Wipers
- Galvanized Steel/Aluminum Panels
- Auto On/Off Reflector Daytime Running Headlamps w/Delay-Off
- Cab Clearance Lights

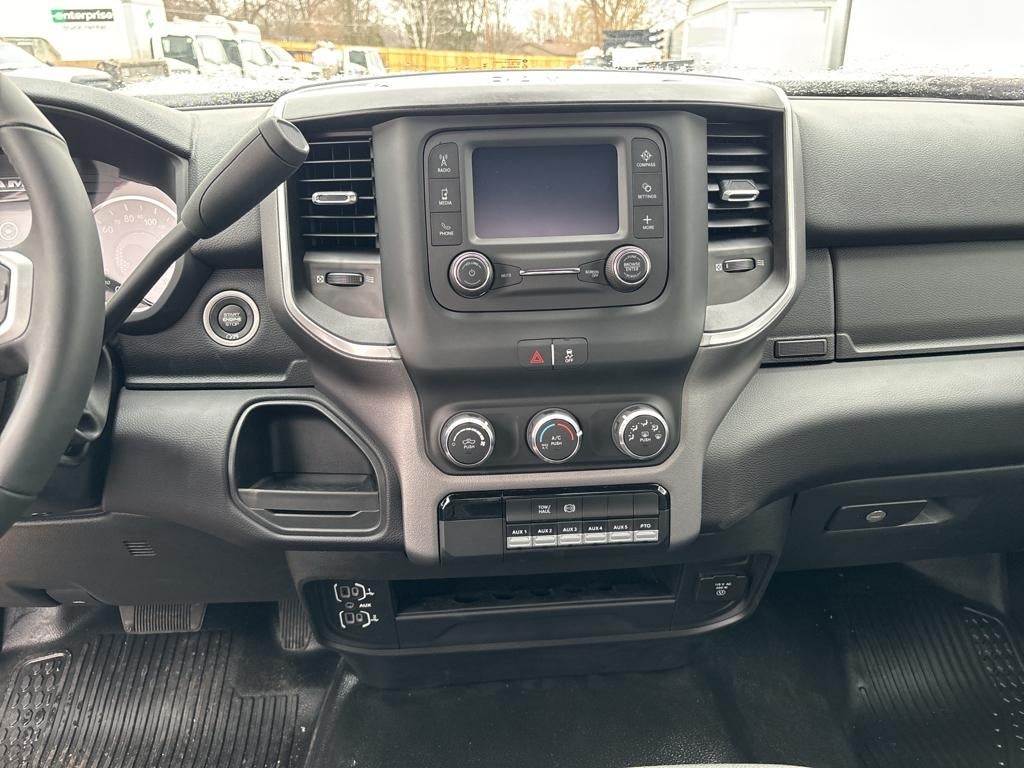

- Radio: Uconnect 3 w/5" Display
- Radio w/Seek-Scan, Clock, Aux Audio Input Jack, Voice Activation, Radio Data System and External Memory Control
- Streaming Audio
- Integrated Roof Antenna
- GPS Antenna Input
- SiriusXM Radio Service
- 2 LCD Monitors In The Front

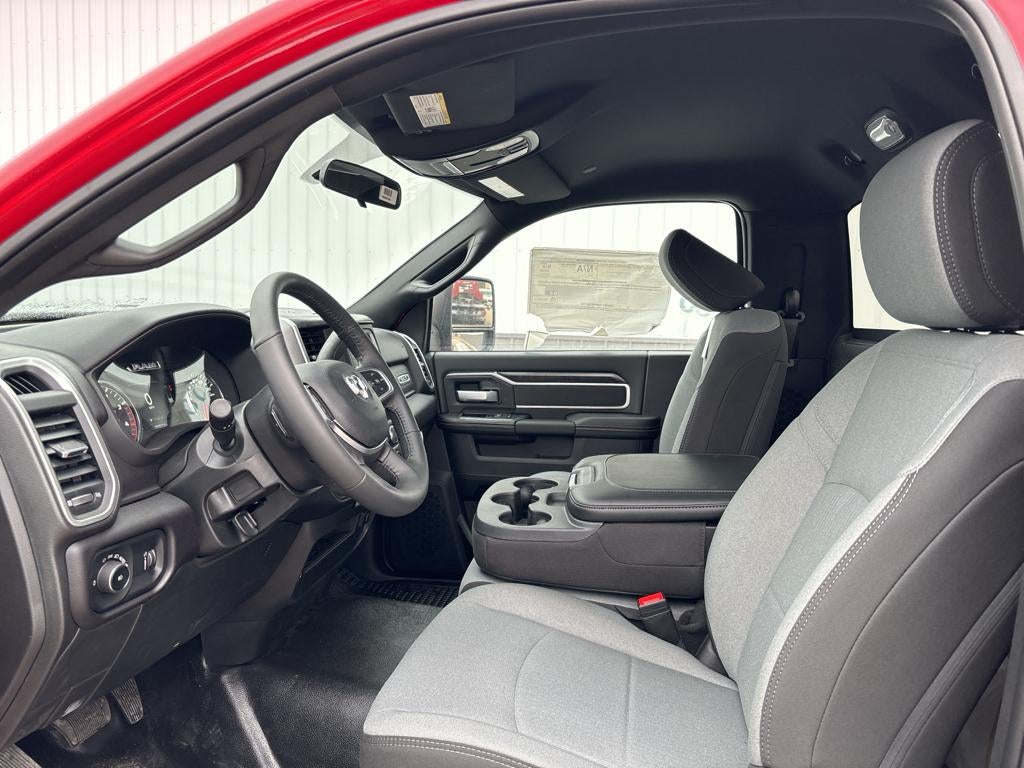

- Bucket Folding Driver Seat w/4 Way Direction Control -inc: Manual Fore/Aft and Adjustable Headrest
- Driver Seat
- Manual Adjust 4-Way Driver Seat
- Bucket Folding Passenger Seat w/4 Way Direction Control -inc: Manual Fore/Aft and Adjustable Headrest
- Passenger Seat
- Manual Adjust 4-Way Front Passenger Seat
- Manual Tilt Steering Column
- Illuminated Front Cupholder
- Proximity Key For Push Button Start Only

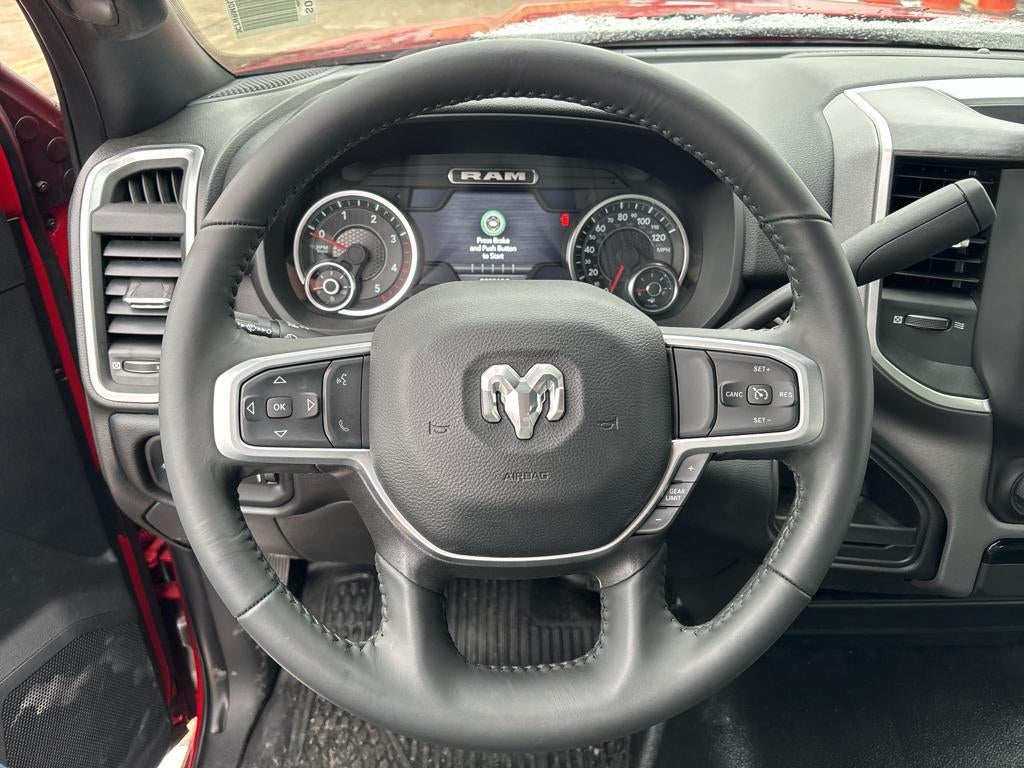

- Cruise Control w/Steering Wheel Controls
- Manual Air Conditioning
- Glove Box
- Interior Trim -inc: Deluxe Sound Insulation and Chrome/Metal-Look Interior Accents
- Full Cloth Headliner
- Urethane Gear Shifter Material
- Day-Night Rearview Mirror
- Passenger Visor Vanity Mirror
- Mini Overhead Console and 2 12V DC Power Outlets
- Floor Covering Carpet -inc: Front Floor Mats
- Tracker System
- Global Telematics Box Module (TBM)
- Integrated Voice Command w/Bluetooth®
- Electronically Controlled Throttle
- For Details, Visit DriveUconnect.com
- For More Info, Call 800-643-2112
- Instrument Panel Bin, Dashboard Storage, Driver And Passenger Door Bins
- Delayed Accessory Power

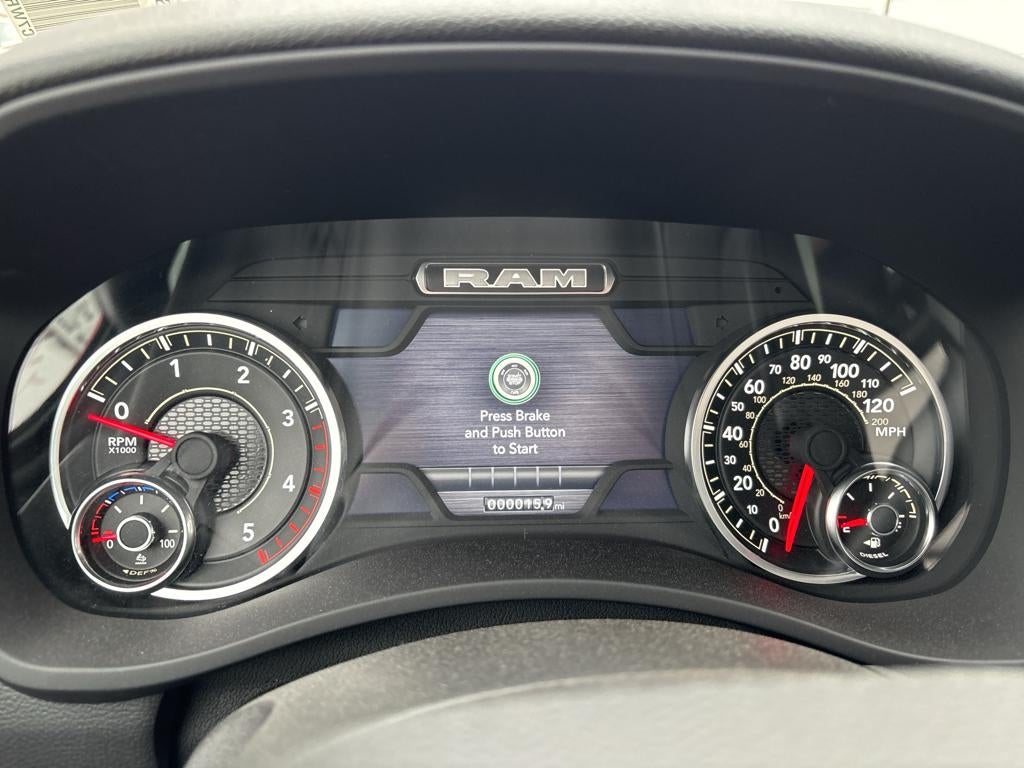

- Driver Information Center
- Redundant Digital Speedometer
- Analog Appearance
- Temperature & Compass Gauge
- Manual Adjustable Front Head Restraints
- Sentry Key Immobilizer
- 2 12V DC Power Outlets
- Air Filtration
- Electronic Stability Control (ESC)
- ABS And Driveline Traction Control
- Side Impact Beams
- SiriusXM Guardian Emergency Sos
- Dual Stage Driver And Passenger Front Airbags
- Airbag Occupancy Sensor
- Outboard Front Lap And Shoulder Safety Belts -inc: Height Adjusters and Pretensioners
ENGINE: 6.7L I6 CUMMINS TURBO DIESEL
- Selective Catalytic Reduction (Urea)
- Dual 730 Amp Maintenance Free Batteries

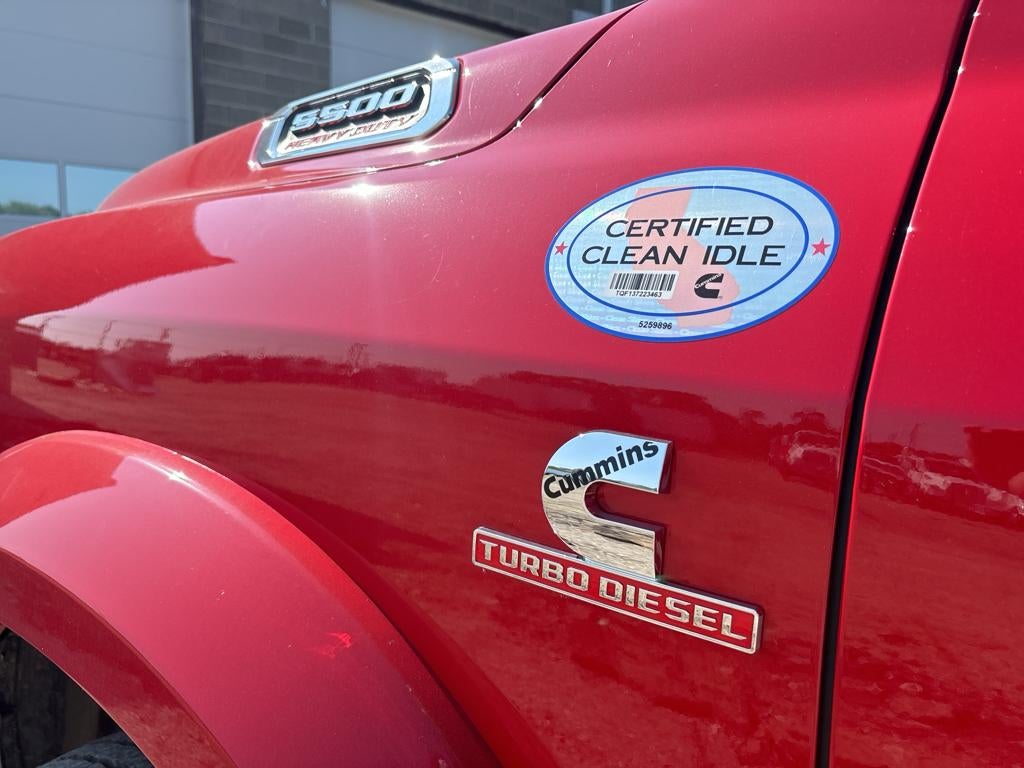

- Clean Idle Emissions Label
- Cummins Turbo Diesel Badge
- Current Generation Engine Controller
- Smart Diesel Exhaust Brake
- GVWR: 19
- 500 lbs
- Supplemental Heater
- B-20 Bio Diesel Capability
- Cold Cranking Amps @ 0° F (Primary): 730
- Cold Cranking Amps @ 0° F (2nd): 730
- Maximum Alternator Capacity (amps): 220
- Base Curb Weight (lbs): 6976
- Gross Axle Wt Rating - Front (lbs): 6500
- Gross Axle Wt Rating - Rear (lbs): 13500
- Curb Weight - Front (lbs): 3880
- Curb Weight - Rear (lbs): 3096
- Gross Vehicle Weight Rating Cap (lbs): 18000
- Gross Combined Wt Rating (lbs): 26000
- Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
- Dead Weight Hitch - Max Tongue Wt. (lbs): 500
- Wt Distributing Hitch - Max Trailer Wt. (lbs): 18870
- Wt Distributing Hitch - Max Tongue Wt. (lbs): 1887
- Maximum Trailering Capacity (lbs): 18870
- Suspension Type - Front: Leading Link
- Suspension Type - Rear: Leaf
- Spring Capacity - Front (lbs): 6500
- Spring Capacity - Rear (lbs): 13500
- Axle Type - Front: Non-Independent
- Axle Type - Rear: Rigid Axle
- Axle Capacity - Front (lbs): 7000
- Axle Capacity - Rear (lbs): 13500
- Axle Ratio (:1) - Front: 4.44
- Axle Ratio (:1) - Rear: 4.44
- Brake Type: 4-Wheel Disc
- Brake ABS System: 4-Wheel
- Brake ABS System (Second Line): 4-Wheel
- Disc - Front (Yes or ): Yes
- Disc - Rear (Yes or ): Yes
- Front Brake Rotor Diam x Thickness (in): 15.3
- Rear Brake Rotor Diam x Thickness (in): 15.3
- Front Tire Order Code: TAE
- Rear Tire Order Code: TAE
- Front Tire Size: 225/70R19.5
- Rear Tire Size: 225/70R19.5
- Front Tire Capacity (lbs): 7940
- Rear Tire Capacity (lbs): 15000
- Revolutions/Mile @ 45 mph - Front: 651
- Revolutions/Mile @ 45 mph - Rear: 651
- Front Wheel Size (in): 19.5 X 6
- Rear Wheel Size (in): 19.5 X 6
- Front Wheel Material: Steel
- Rear Wheel Material: Steel
- Steering Type: Re-Circulating Ball
- Turning Diameter - Curb to Curb (ft): 61.5
- Fuel Tank Capacity, Approx (gal): 52
- Wheelbase (in): 204.5
- Length, Overall (in): 296.3
- Width, Max w/o mirrors (in): 86.9
- Height, Overall (in): 81.4
- Overhang, Front (in): 40.8
- Overhang, Rear w/o bumper (in): 51.1
- Cab to Axle (in): 120.2
- Cab to End of Frame (in): 171.1
- Ground Clearance, Front (in): 8
- Ground Clearance, Rear (in): 8
- Passenger Capacity: 2
- Front Head Room (in): 39.8
- Front Leg Room (in): 40.9
- Front Shoulder Room (in): 65.9
- Front Hip Room (in): 62.9
- Vehicle Name: Ram 5500 Chassis Cab
- Body Style: Regular Cab
- Body Code: H
Warranty
- Basic Warranty: 36 months / 36,000 miles
- Drivetrain Warranty: 60 months / 60,000 miles
- Corrosion Warranty: 60 months / 100,000 miles
- Roadside Assistance Warranty: 60 months / 100,000 miles
