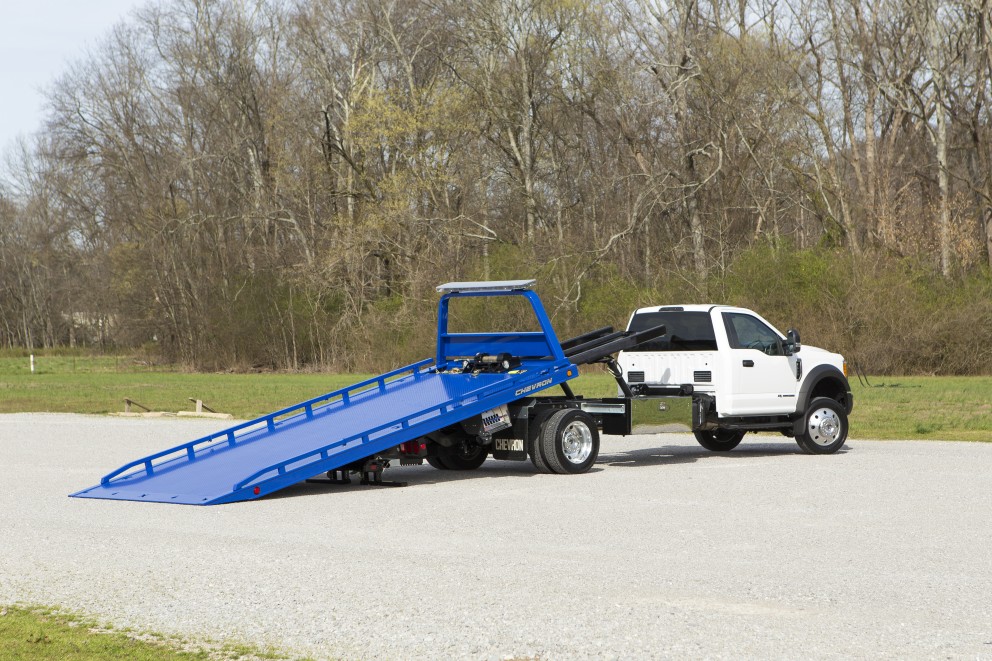

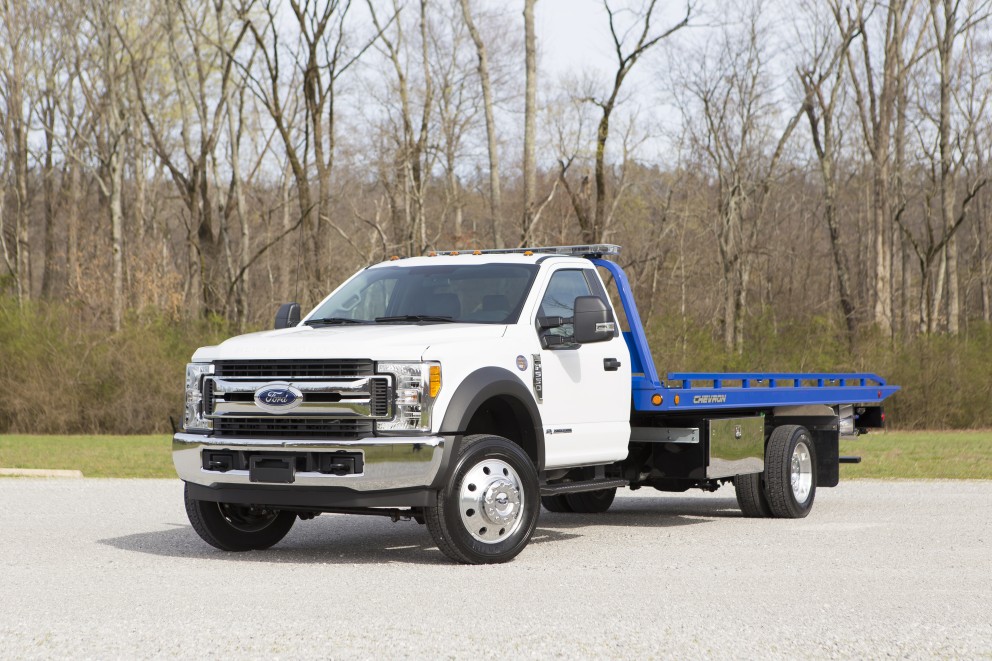

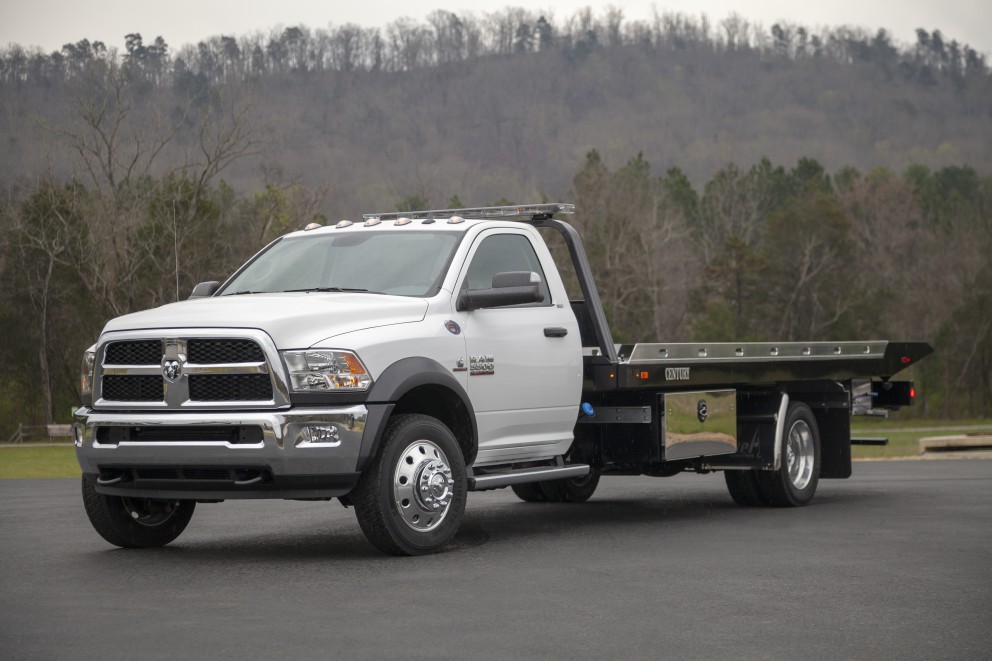

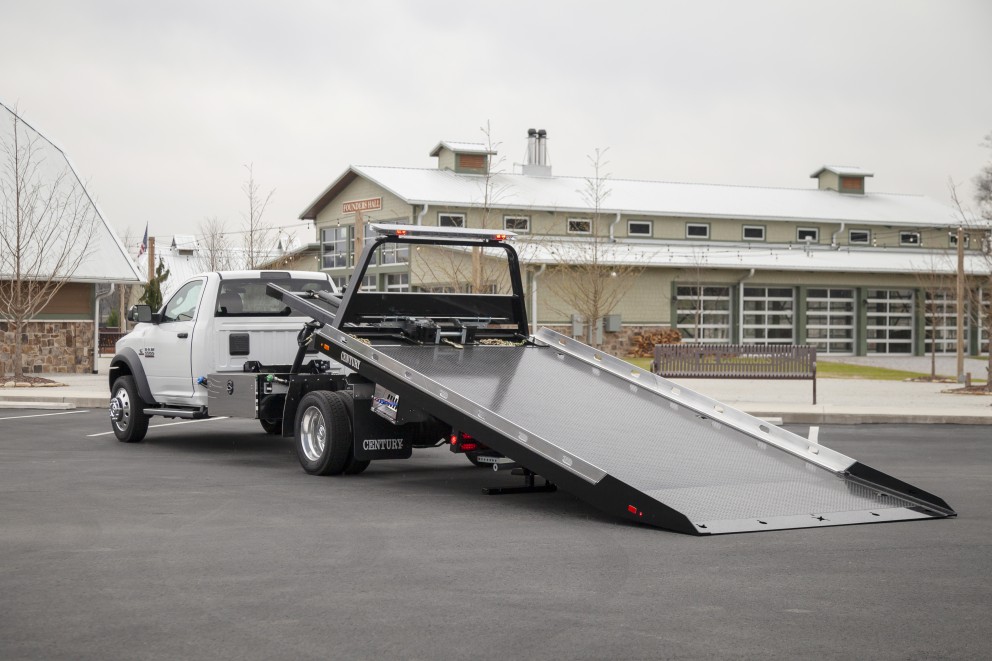

10 Series
The Miller Industries 10 Series Carrier continues to set the standard for operators searching for rollback tow trucks for sale and dependable car carriers built for everyday towing operations. Designed for durability, ease of operation, and long-term reliability, the 10 Series combines industry-proven performance with the features professional towing companies expect from a modern carrier.
Available under the Century, Vulcan, and Chevron brands, the 10 Series is known for its smooth loading capabilities, user-friendly controls, low loading angles, and dependable wheel-lift operation. Built to handle the demands of daily towing and vehicle transport, these carriers are designed to keep operators productive and trucks on the road.
At Lynch Truck Center, we regularly stock a wide selection of 10 Series rollback carriers for sale, many of which are available for immediate delivery. As one of the largest stocking distributors of Miller Industries equipment in the country, we help towing companies find the right carrier quickly with financing, trade-ins, and nationwide delivery available.
Features
Standard
- Platform Available in Aluminum or Steel
- Floor Level Sides w/ Stake Pockets (Steel)
- Bi-Hollow Tube Rails (Aluminum)
- Subframe Length 210” (19’-19.5’); 230” (20’-22’)
- Right & Left Chain Trays
- Safety Chains (2 Front, 2 Rear)
- Painted in Black Acrylic Urethane (Steel Only)
- Left & Right Side Illuminated Controls
- Federal Standard #108 LED Lighting
- 8,000 lb Hydraulic Winch w/ 50’ Cable
- Full Function Wheel Lift System
- Slide-In L-Arms w/ Anti-Theft Storage
- Pre-Wired Electrical Junction Box
- Back-Up Lights & Alarm
- Adjustable Rear Stabilizer
- 6-Spool Capable Control Station
- Lubrication Fittings on All Pivot Points
- Bed Built 96” Wide
- 11 Key Slot Package (Steel)
- 6 Key Slot Package (Aluminum)
- Slide Pads
- Bed Anti-Tilt Lockout
- Roller Bed Positive Lock-Down
- Two Lift Cylinders
- One Extension Cylinder
- Manual Shift Winch Clutch Release
- Cable Tensioner
- Cable Roller Guide
- Tow Light Socket
- Hydraulic Pump
- Mud Flaps
- 2 Position House Lock with Indicators
Optional
- Frame-Mounted Pylon (Requires 6” or 12” Additional CA depending on size of pylon base)
- Bed-Mounted Cab Protector
- Right Approach™ or Extreme Angle Option
- Smooth Floor in lieu of Tread Plate (Steel)
- Color on Top of Deck & Side Rails (Steel)
- Various Side Rail Options Available
- Work Lights (Rear, Pylon, or Winch Mounted)
- Combination Dock Stabilizer / Wheel Lift
- Extendable Pintle Hitch
- Solid Tube Side Rails (Steel, N/C))
- Wireless Winch Remote
- Steel or Aluminum Tool Compartments
- Various Chain & Strap Assemblies
- Multiple Winch Options
- SST® Option
- 9-Spool Control Station Capable
- Air Shift Winch Clutch Release(s)
- Bed Built 102” Wide
- Galvanized Subframe
- Wood Floor*
- PTO
- Switch Panel
- Additional Lighting
- Auto-Grip™ II Wheel Lift
- 3-Way Pivot & Other Wheel Retainer Options
- Additional Key Slots
- Slidewinder - Side-Mounted Winch
- Outboard Tilt Cylinders (Use outboard tilt cylinders to avoid midship fuel tanks or in-line exhaust)
- Load Rite Gen II® Option
- Additional Chain Locks
Specifications
Carrier
| Load Rating* | 10,000 lbs. | |
|---|---|---|
| Platform Length | 19’, 19.5’, 20.5', 21’, 21.5’, 22’ | |
| Platform Thickness | 3/16” | |
| Platform Width (Outside) | 96” | |
| Platform Width (Inside)** | 91.5” | |
| Crossmembers (Steel) | 2” x 2” on 8” Centers | |
| Crossmembers (Aluminum) | 2” on 3 3/8” Centers | |
| Winch (First Layer) | 8,000 lbs. | |
| Cable | 3/8” x 50’ | |
| Wheel Lift Reach (Extended) | 66" | |
| Wheel Lift Rating | 3,000 lbs. | |
| Tow Rating at Full Extension | 7,500 lbs. | |
Cab to Axle (C.A.) Requirements
| Carrier Length | Tilt Method | Clear C.A. | Minimum Frame RBM |
|---|---|---|---|
| Frame-Mounted Headboard | - | Add 6” | - |
| 19’ | OBT | 120” | 500,000 in/lbs. |
| 19.5‘ | OBT | 120” – 126” | 500,000 in/lbs. |
| 20.5‘ | IBT | 132” | 600,000 in/lbs. |
| 21‘ | IBT | 138” | 600,000 in/lbs. |
| 21.5‘ | IBT | 144” | 600,000 in/lbs. |
| 22‘ | IBT | 150” | 600,000 in/lbs. |
*The outside frame rails of the chassis extending behind the cab must be free of fuel tanks, air tanks, battery boxes, exhaust stacks, etc.
Chassis Recommendations
| Minimum GVWR | 15,000 lbs. |
|---|---|
| Maximum GVWR | 25,500 lbs. |
| Wheel Size | 16” – 19.5” |
| Minimum Frame Height | 31” |
| Maximum Frame Height | 39” |
| Minimum Frame Length Behind Center of Rear Axle | 36” |
| Wheel and Tire Size* | 225/70R19.5 |
*The outside frame rails of the chassis extending behind the cab must be free of fuel tanks, air tanks, battery boxes, exhaust stacks, etc.
*Wheel and tire size for Ford F550, RAM 5500, Chevy 6500, and International CV.
For Ford F650, International MV, Freightliner M2, and Hino use 245/70R19.5 or 255/70R22.5 wheel and tire size.
