12 Series
The Miller Industries 12 Series LCG® carrier is built for operators looking for a smarter, more versatile solution in a rollback tow truck for sale. Designed with a patented Low Center of Gravity (LCG®) design, the 12 Series lowers deck height compared to conventional carriers, improving stability during transport while making it easier to load and secure vehicles and equipment.
The lower deck height also allows operators to transport taller loads and simplifies loading low-clearance vehicles without relying on ramps or wood blocks. Combined with smooth loading angles and easy ground-level access for tie-downs, the 12 Series LCG® is engineered to improve efficiency in real-world towing and transport operations.
Available in multiple deck lengths and configurations, the Century, Vulcan, and Chevron 12 Series LCG® carriers are a popular choice for towing companies, equipment transport, and fleet operators looking for a dependable car carrier for sale with added flexibility and capability.
At Lynch Truck Center, we regularly stock a wide selection of 12 Series LCG rollback carriers for sale, many of which are available for immediate delivery. As one of the largest stocking distributors of Miller Industries equipment in the country, we help operators find the right carrier quickly with financing, trade-ins, and nationwide delivery available.
Features
Standard
- Platform Available in Aluminum or Steel
- Floor Level Sides w/ Stake Pockets (Steel)
- Bi-Hollow Structural Side Rails (Aluminum)
- Right & Left Chain Trays
- Safety Chains (2 Front, 2 Rear)

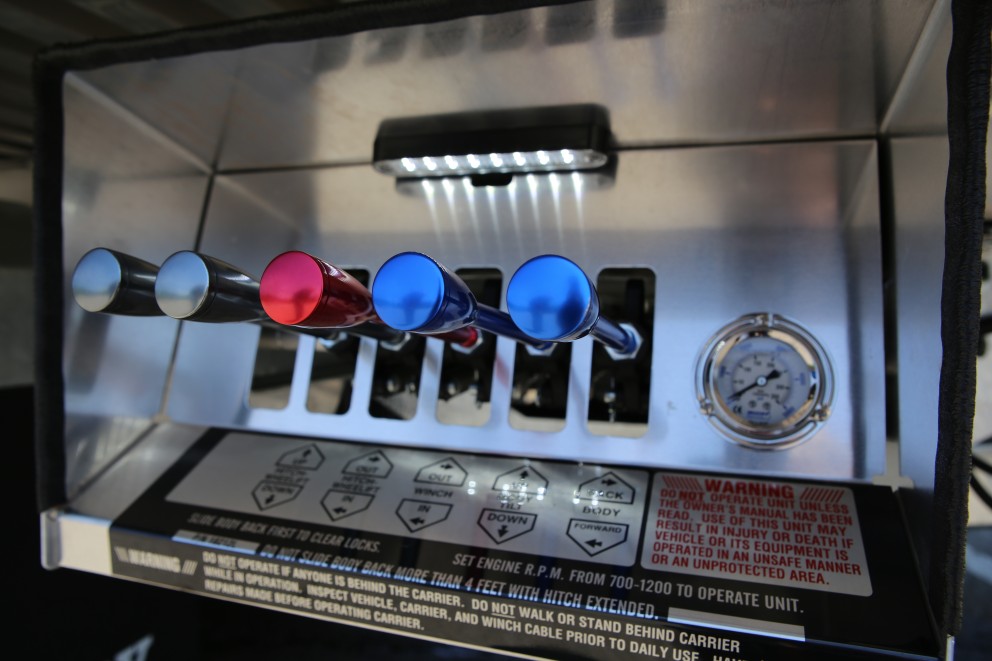

- Left & Right Side Illuminated Controls
- Federal Standard #108 LED Lighting
- Painted in Black Acrylic Urethane (Steel Only)
- 8,000 lb Hydraulic Winch w/ 50’ Cable
- Full Function Wheel Lift System
- Slide-In L-Arms w/ Anti-Theft Storage
- Pre-Wired Electrical Junction Box
- Adjustable Rear Stabilizer
- Bed Built 102” Wide
- 11 Key Slot Package (Steel)
- 6 Key Slot Package (Aluminum)
- Slide Pads
- Bed Anti-Tilt Lockout
- Roller Bed Positive Lock-Down
- Two Lift Cylinders
- One Extension Cylinder
- Manual Shift Winch Clutch Release
- Back-Up Lights & Alarm
- Cable Tensioner
- Cable Roller Guide
- Tow Light Socket
- Mud Flaps
- Hydraulic Pump
- Lubrication Fittings on All Pivot Points
- Subframe Length 230” IBT
Optional
- Frame-Mounted Pylon (Requires 6” or 12” Additional CA depending on size of pylon base)
- Color on Top of Deck & Side Rails (Steel)
- Right Approach™ or Extreme Angle Option
- SST® Option
- Smooth Floor in lieu of Tread Plate (Steel)
- Solid Tube Side Rails (Steel, N/C))
- Steel Removable Tube Rails
- Aluminum Removable Blade Rails
- Wireless Winch Remote
- Steel or Aluminum Tool Compartments
- Work Lights (Rear, Pylon, or Winch Mounted)
- Various Chain & Strap Assemblies
- Combination Dock Stabilizer / Wheel Lift
- Hydraulic Stabilizer w/ Extendable Pintle
- Multiple Winch Options
- 9-Spool Control Station Capable
- Bed-Mounted Cab Protector
- Galvanized Subframe
- 6 Key Slot Package (Aluminum)
- Additional Key Slots
- Auto-Grip™ II Wheel Lift
- Wood Floor*
- PTO
- Switch Panel
- Emergency Lighting
- 3-Way Pivot & Other Wheel Retainer Options
- Slidewinder - Side-Mounted Winch
- Air Shift Winch Clutch Release(s)
- Load Rite Gen II® Option
- Stabilizer Spades
Specifications
Carrier
| Load Rating* | 12,000 lbs. | |
|---|---|---|
| Platform Length | 20.5’, 21’, 21.5’, 22’ | |
| Platform Floorplate Thickness | 3/16” | |
| Platform Width (Outside) | 102” | |
| Platform Width (Inside)** | 96.5” to 101” | |
| Platform Mainbeam | 6” I-Beam | |
| Platform Crossmembers (Steel) | 2” x 2” Cor-ten Tube | |
| Deck Height Above Chassis Frame (Steel) | 6.75” | |
| Platform Crossmembers (Aluminum) | 2 1/4” | |
| Crossmember Spacing (Steel) | 8” on Center | |
| Crossmember Spacing (Aluminum) | 4” on Center | |
| Subframe Rails | 5” x 3” x 5/16” H.S. Tube | |
| Rear Pivot | 1 Piece 1 1/2” Diameter | |
| Winch (1st Layer) | 8,000-lbs. Worm | |
| Cable | 3/8” x 50’ | |
| Bed Tilt Cylinders | 3” Bore | |
| Bed Extension Cylinder | 3 1/2” x 120” Stroke | |
| Wheel Lift Reach (Extended) | 66” | |
| Wheel Lift Rating (Extended) | 4,000 lbs. | |
| Tow Rating | 10,000 lbs. | |
| Deck Height Above Chassis Frame (Wood) | 7.75” |
Chassis Recommendations
| GVWR | 19,500 lbs. – 26,000 lbs. |
|---|---|
| Minimum Frame Length Behind Center of Rear Axle | 36” |
| Minimum Frame Height | 33” |
| Maximum Frame Height | 38” |
| Wheel & Tire Size* | 255/70R 22.5" |
Cab to Axle (C.A.) Requirements
| Carrier Deck Length | Clear C.A. | Minimum Frame RBM |
|---|---|---|
| 20.5’ | 132” | 600,000 in/lbs. |
| 21’ | 138” | 600,000 in/lbs. |
| 21.5‘ | 144” | 600,000 in/lbs. |
| 22’ | 150” | 600,000 in/lbs. |
Important
Fuel tanks must be under the cab. Fuel tanks can extend up to 6 inches behind the cab only in combination with a frame-mounted pylon. Fuel fill must not behind the cab. The preferred location for the battery box is under the passenger seat or under the cab, battery boxes in other locations may require relocation.
* A minimum of 49" between the inside of the rear tires is required.
‡ The outside frame rails of the chassis extending behind the cab must be free of fuel tanks, air tanks, exhaust stacks, etc. The LCG® carrier is not compatible with chassis that have inboard mid-ship fuel tanks such as the Ford 550 and Dodge 5500.
Air-bag rear suspensions are recommended for the lowest possible load angle but the LCG® carrier can be mounted on some chassis with leaf spring suspensions. Most chassis components behind the cab outside the frame must be at least 2 inches below the top of the truck frame to clear the bed slide rails.
