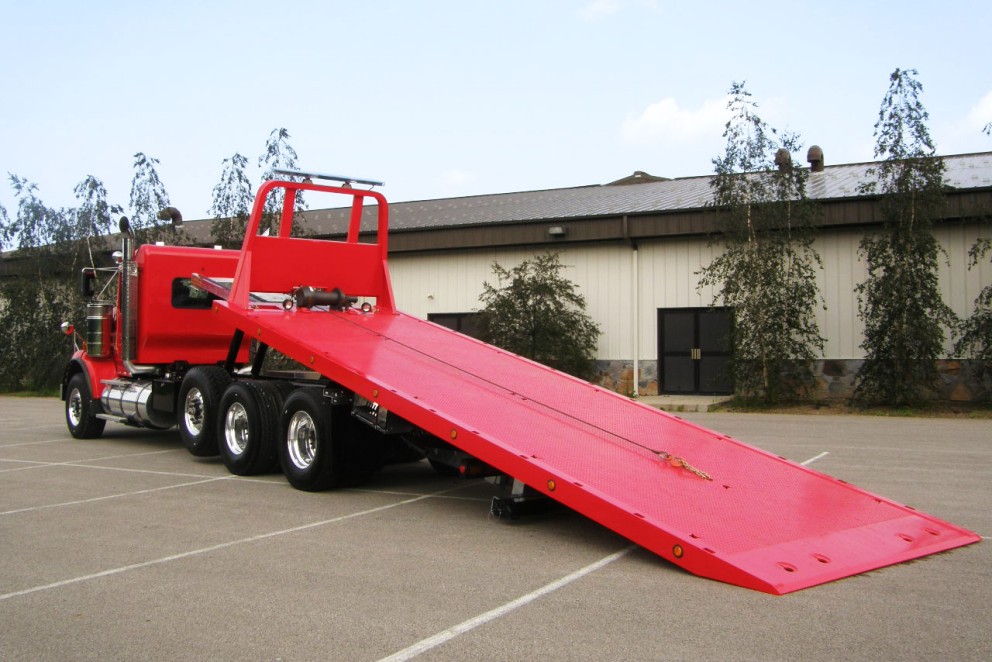

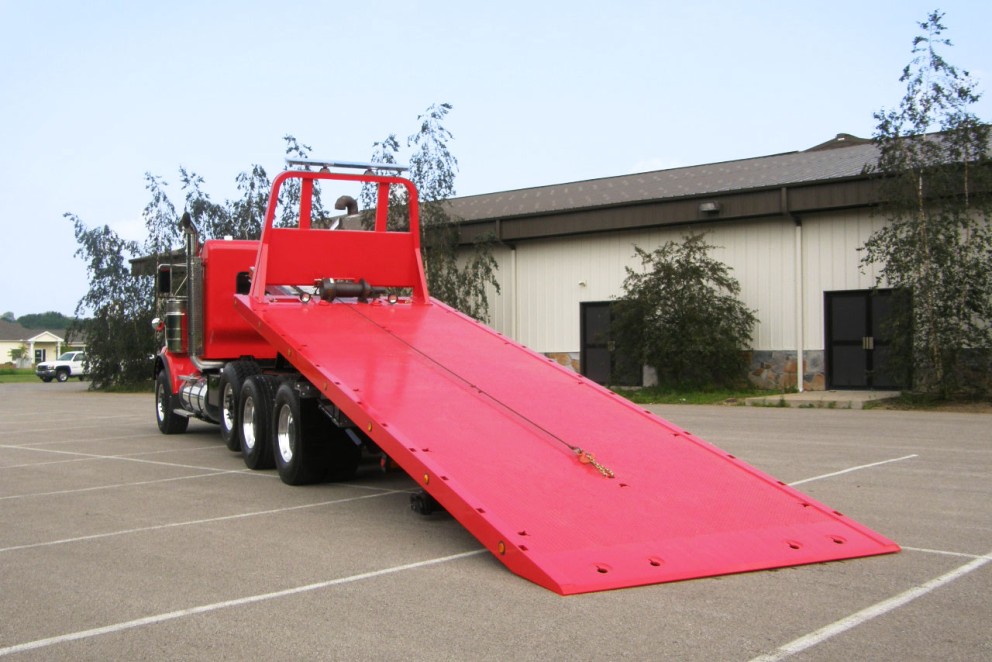

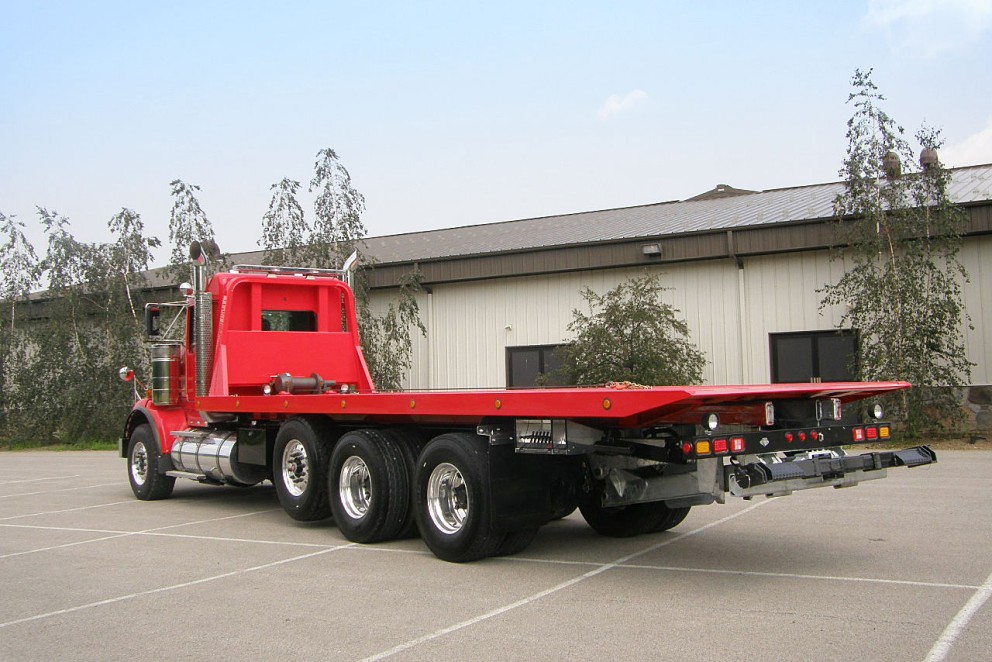

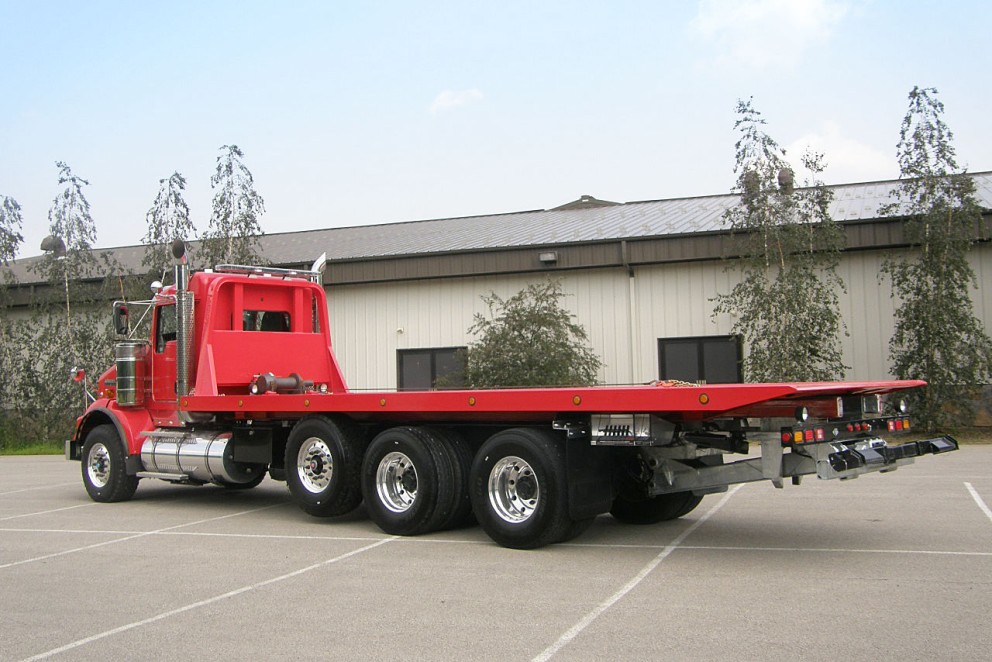

40 Series
Features
Standard
- 102” Wide Body
- 1/4” Deck Plate (Steel Floor)
- 4” x 3” Structural Tube Crossmembers on 8” Centers
- Floor Level Sides
- Heavy Duty Approach Plate
- Full Length Subframe
- Fixed Position Stabilizer
- Tri-Axle Configuration
- Illuminated Dual Controls
- 20,000 lb Planetary Upright Winch with 9/16” x 75’ Cable
- Air Free Spool Winch
- 24 GPM Direct Mount Pump
- Body Lock
- Mudflaps
- Federal Standard 108 Shock Mounted Lighting
- 10 Body Marker Lights
- Water Resistant Junction Boxes for Wire Harness Connection
- Lubrication Fittings on all Pivot Points
- 6 Chain Locks
- Mechanical Anti-tilt
- Inboard Tilt Cylinders
- Front Left and Right Chain Trays
- BackUp Alarm
- Cable Tensioner
- Black Body Paint
- Tow Light Plug
- Pilot Operated Holding Valves On Tilting and Lifting Functions
- Two Safety Chains
Optional
- Removable Rails
- Welded Open Rail Sides
- Floor Level Sides with Stake Pockets
- Trailer Style Rubrails
- Additional Chain Locks
- Smooth Floor
- 1 1/4” Apitong Hardwood Floor
- Steel Floor Overlay on Wood
- 20,000 lb Planetary Upright Winch
- 30,000 lb Planetary Upright Winch
- Air Tensioner and Regulator
- Winch Guard Bulkhead
- Heavy Duty Cab Protector
- PTO
- Retractable Ladder
- Various Toolbox Options
- Factory Installation
- Factory Paint Other Than Black
- Hydraulic Rear Stabilizer
- Combination Underlift/Hydraulic Rear Stabilizer
- Galvanized Subframe
- Wired Remote Control
- Radio Remote Control
- Cab Protector Window Screen
- Cab Protector Window Grid
- Lockable Chain Racks
- Wheel Pockets with Removable Aluminum Covers
Accessories
- Bar Light
- Work Lights
- Switch Panel
- Frame Forks for Underlift Crossbar
- Frame Fork Storage Rack
- Underlift Pintle Hitch
- Stabilizer Mounted Pintle Ball Hitch
- Magnetic Tow Lights
- J-Hook Chains
- Front Hook-Up Chain
- Mudflaps
Specifications
Platform
| Body Width | 102” Outer Deck |
|---|---|
| Body Extension | 120” |
| Wheel Lift Reach | 72” |
| Control Valve | Sectional, 20 GPM, 2400 PSI |
| Oil Reservoir | 24 Gallons |
| Oil Filter (Immersable) | 250 PSI, 25 GPM, 25 Microns |
| Pump | 24 GPM |
| Body Rating * | 40,000 lbs. Evenly Distributed |
Underlift
| Lift Rating—Extended | 10,000 lbs. |
|---|---|
| Tow Rating | 30,000 lbs. |
| L-Arms | 6,000 lbs. |
| Forks | 10,000 lbs. |
Chassis Recommendations
| Minimum GVWR - 60,000 lbs. | ||
|---|---|---|
| Tri-Axle Configuration | ||
| Tag Axle - 52” on Center from Drive Axle | ||
| After Frame 54” to 57” from Center of Trunion | ||
| Accessible PTO Opening | ||
| Maximum Frame Height - 44 Inches | ||
| Minimum Frame Height - 39 Inches | ||
| Frames Under 39 Inches - Consult Factory | ||
| Minimum Frame RBM Each Rail 3,000,000 in/lbs | ||
| Rear Axle Suspension Must Support Truck Frame Behind Rear-Most Axle | ||
| Usable Cab-To-Bogie | 26’ | 174"-176" |
| Usable Cab-To-Bogie | 27’ | 182”-186" |
| Usable Cab-To-Bogie | 28’ | 190”-198" |
| Usable Cab-To-Bogie. | 29’ | 198”-206" |
| Usable Cab-To-Bogie | 30’ | 206”-214" |
Miller Industries reserves the right to improve or upgrade its products without obligation to modify previously manufactured units.
Patents and Patents Pending.
